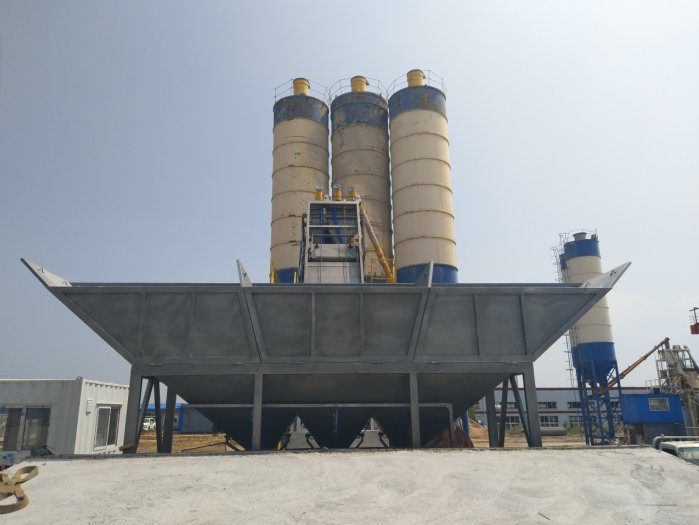

As an efficient, stable, and simple concrete mixing plant, the HZS75 mixing plant equipment is widely used in the field of construction engineering. Its basic configuration mainly includes five aspects.
Configuration 1: Batching machine system
The batching machine system of HZS75 concrete mixing plant adopts PLD2400 batching machine, which also includes aggregate conveyor belt and aggregate metering system.
Configuration 2: Mixing System
The mixing system of HZS75 concrete mixing plant mainly consists of a mixing host and a conveying system. The mixing host adopts the JS1500 double horizontal shaft forced mixer, which has efficient and uniform mixing capacity; The conveying system of the mixing plant equipment mainly includes screw conveyors and belt conveyors.
Configuration Three: Cement Powder System
The cement and powder system of HZS75 concrete mixing plant mainly includes cement silo, screw conveyor, powder weighing system, and water adding system. The capacity of the cement silo is relatively large, and the working principle of the screw conveyor is to transport the cement to the mixer, while the powder weighing system can accurately weigh the amount of powder input.
Configuration 4: Water and liquid additive system
The water and liquid additive system of the HZS75 concrete mixing plant mainly includes a water pump, a water tank, and a liquid additive weighing system. The water pump can extract water from the water tank and deliver it to the mixer. The liquid additive weighing system can accurately weigh the amount of liquid additive input.
Configuration 5: Control System
The HZS75 concrete mixing plant adopts an automated control system, which can achieve automatic control and remote monitoring equipment through PLC control, and accurately control the operation of the mixer, conveying system, cement and powder system, water and liquid additive system.
