HUITE HZN75 precast concrete batching plant is a high-efficiency, modular concrete mixing equipment engineered exclusively for medium and large-scale precast concrete production scenarios.

Main Components

1. All core parts use internationally recognized brand components and undergo strict factory testing to ensure stable, long‑term operation under continuous production.

2.

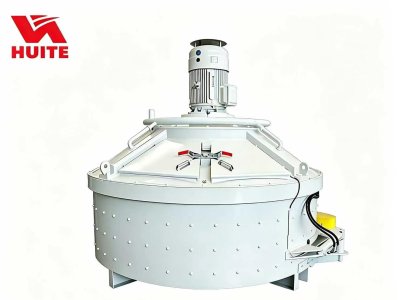

3. • Mixing System

4. Equipped with JS1500 compulsory twin‑shaft mixer or optional vertical‑shaft planetary mixer (1500L per batch). It provides strong shearing and stirring force, uniform mixing, and excellent adaptability to stiff, semi‑dry, high‑strength, and flowing precast concrete. Wear‑resistant alloy liners and high‑strength mixing blades extend service life and ensure consistent output.

5.

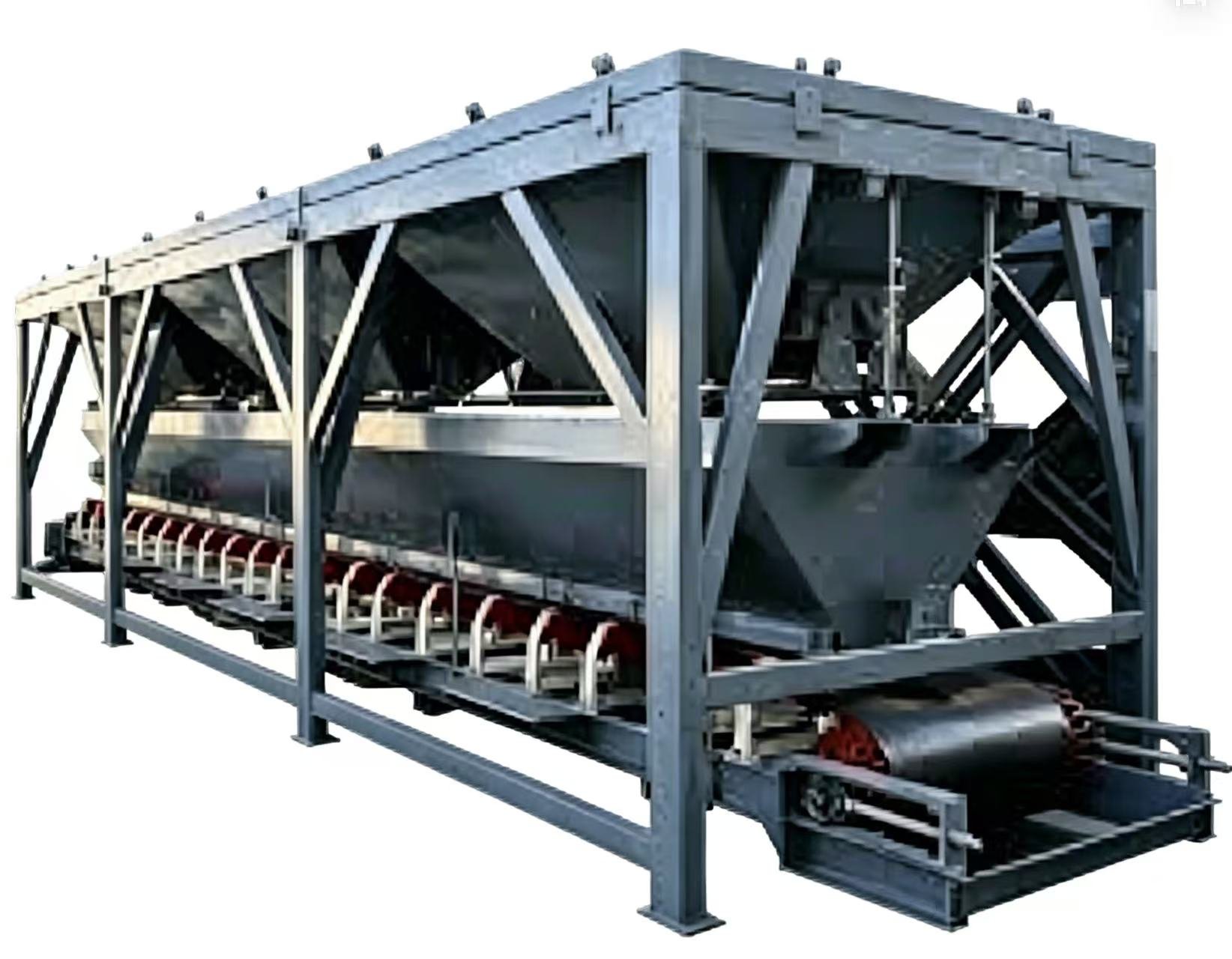

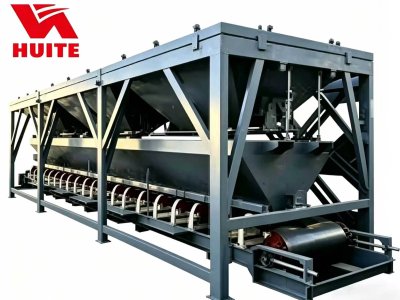

6. • Aggregate Batching System

7. PLD2000 high‑precision aggregate hopper with

8. 3 sealed bins Supports simultaneous weighing and feeding of sand, gravel, crushed stone, and other aggregates. Fully enclosed structure reduces dust emission and keeps the working area clean.

9.


10. • Weighing System

11. High‑precision electronic weighing units for aggregate, cement, water, and admixtures with automatic compensation and real‑time error correction. Anti‑corrosion steel weighing hoppers maintain long‑term accuracy. Real‑time data transmission supports full‑process monitoring and production record keeping.

12.

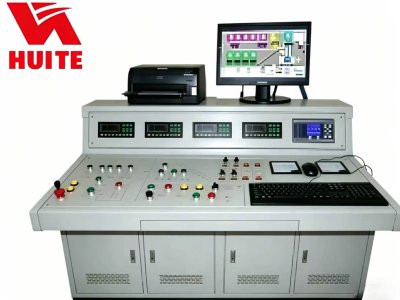

13. • Control System

14. Intelligent PLC control system with industrial computer, touchscreen HMI, and fault self‑diagnosis. Built with imported high‑performance chips and reliable electrical parts to realize fully automatic batching, mixing, discharging, and cleaning. Supports formula storage, data statistics, remote monitoring, and centralized management.

15.


16. •

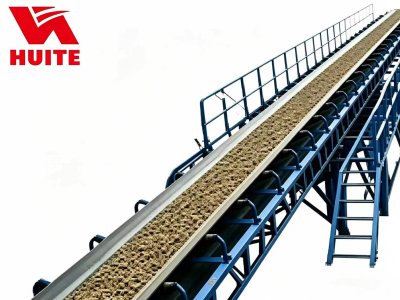

1. Conveying System

1. Includes high‑capacity belt conveyors for aggregates, fully enclosed screw conveyors for cement and fly ash, and dedicated delivery pumps for water and additives, ensuring efficient and pollution‑free transmission.













Core Advantages


2. Perfect for Precast Concrete Production

3. Optimized for stiff, semi‑dry, high‑strength, and flowing concrete used in precast beams, columns, pipes, wall panels, blocks, and utility structures. Ensures high homogeneity and stable mold‑filling performance.

4. Stable Mixing Quality & Long Service Life

5. Mixing cycle approx. 60 seconds; concrete homogeneity ≥95%. Long‑wearing parts reduce replacement frequency and maintenance costs.

6. High‑Precision Weighing & Consistent Proportioning

7. Professional weighing sensors deliver industry‑leading accuracy:

8. • Aggregate: ±2.0%

9. • Cement: ±1.0%

10. • Water: ±1.0%

11. • Admixture: ±1.0%

12. Automatic error correction eliminates deviations caused by temperature, humidity, or material features, improving concrete stability and reducing material waste.

13. Intelligent Operation & Easy Control

14. User‑friendly touchscreen supports formula storage, one‑click switching, automatic production recording, and real‑time fault alarms. Automatic centralized lubrication reduces manual labor.

15. Compact Layout & Fast Installation

16. Modular design saves space compared with traditional large plants. Installation period: 7–10 working days (excluding foundation). Professional commissioning ensures quick and standardized deployment.

17. Energy Saving & Eco‑Friendly

18. High‑efficiency motors lower power consumption. Ultra‑high dust removal rate and low noise meet global green construction requirements, suitable for urban and factory zones.

19. Low Failure Rate & Convenient Maintenance

20. Key electrical and hydraulic parts from international famous brands; low failure rate. Simple structure, easy maintenance access, and low long‑term operation cost.

FAQs

1. Q1: What project scenarios fit the HZN75 batching plant?

2. A: It is ideal for precast component factories, medium infrastructure projects, precast beam yards, pipe and block plants, and modular construction bases requiring stable 75 m³/h concrete output.

3. Q2: Can this machine produce high‑strength precast concrete?

4. A: Yes. It supports C15–C60 full‑grade concrete, especially stiff/semi‑dry and high‑strength concrete for precast products, with uniform mixing and reliable strength.

5. Q3: Do you provide operator training?

6. A: Yes. We offer on‑site installation, commissioning, and systematic operator training to ensure your team can run the machine safely and proficiently.

7. Q4: What kind of power supply does the HZN75 require?

8. A: It supports standard industrial 380V/50Hz three‑phase power; we can also customize voltage and frequency according to your local power standard.

9. Q5: How to ensure long‑term stable operation?

10. A: We provide a detailed maintenance schedule, genuine spare parts supply, and 24/7 technical support to keep your equipment running reliably for 15–20 years.

Why Choose HUITE HZN75?

1. HUITE has professional R&D and manufacturing experience, with ISO9001, CE and other international certifications. The HZN75 precast concrete batching plant brings stable performance and high return on investment for global users.

2. • Balanced Capacity & Cost Efficiency

3. 75 m³/h output meets most medium precast and construction demands, with lower investment and operating cost than large‑scale plants.

4. • Precast‑Specialized Design

5. Tailored for precast production, ensuring ideal workability, uniformity, and strength for mold casting and precast elements.

6. • Modular & Transport‑Friendly

7. Compact modular structure is easy to transport, install, and relocate, suitable for both fixed factory and temporary site use.

8. • Stable Components & Low Failure

9. World‑famous core parts and strict quality control minimize downtime and maintenance cost.

10. • Full‑Process Service & Global Support

11. One‑stop service from design, production, installation, training to after‑sales, ensuring worry‑free use worldwide.
