Key Advantages
1. High-Efficiency Vertical Shaft Mixing: Tailored for Precast Concrete Production

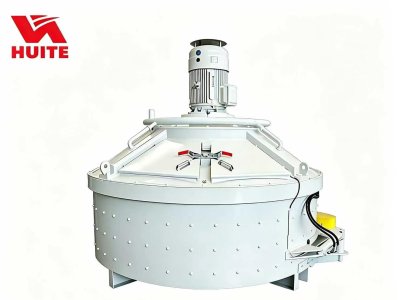

The HZN90 precast concrete batching plant adopts a high-performance vertical shaft concrete mixer as the core component, with a specially designed mixing blade and tank structure that realizes three-dimensional strong mixing of materials. The mixing effect is uniform and thorough, perfectly matching the high-strength and high-density quality requirements of precast concrete components.
Core Index
Specific Data
Mixer Nominal Capacity
1500L
Theoretical Productivity
90m³/h
Mixing Efficiency Improvement
30% vs traditional horizontal mixers
Mixing Cycle
25 seconds

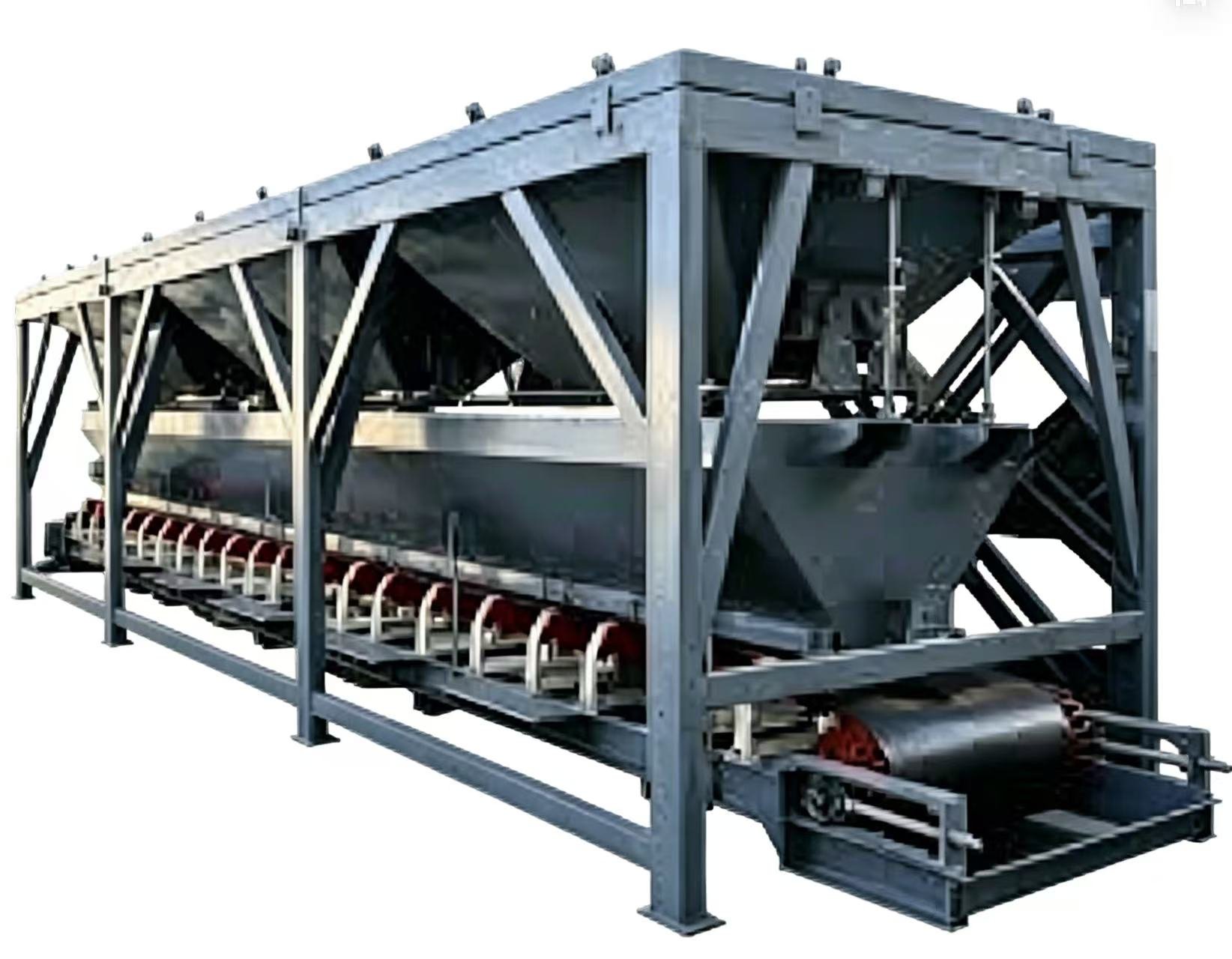

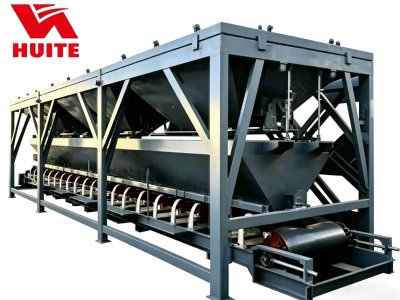

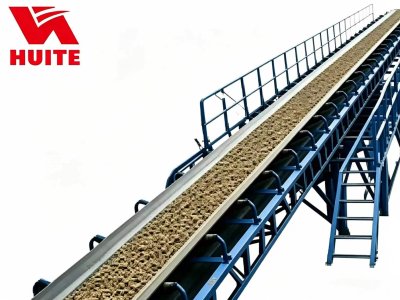

Equipped with a high-power variable frequency drive system and heavy-duty belt conveyor, it ensures continuous and stable material feeding and mixing output, effectively meeting the high-volume production demand of precast concrete projects and avoiding production interruptions caused by equipment failure.
2. Ultra-Precise Measurement System: Uncompromising Precast Concrete Quality
The HZN90 precast concrete batching plant is fitted with an imported high-precision digital weighing and measurement system with automatic dynamic compensation and anti-interference functions, which realizes real-time monitoring and adjustment of material proportioning, fundamentally guaranteeing the consistency and stability of precast concrete mix quality.
Measured Material
Measurement Accuracy
Cement, Fly Ash, Water, Admixtures
±1%
Aggregate
±2%
The system supports precise proportioning of various high-performance precast concretes (including high-strength concrete, self-compacting concrete, fiber concrete), completely eliminating quality defects and material waste caused by inaccurate measurement, and ensuring the qualification rate of precast components reaches 99.9%.
3. Advanced Intelligent Control: Efficient, Safe and Humanized Operation

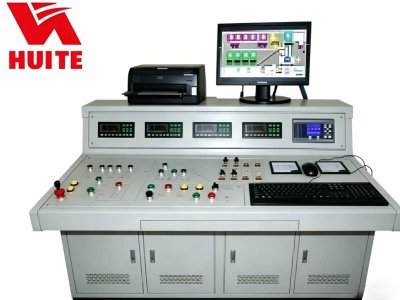

Adopting a high-end PLC control system with internationally renowned Schneider and Siemens components, the HZN90 precast concrete batching plant supports automatic/semi-automatic/manual three operation modes, which can be flexibly switched according to production needs. The industrial touch screen operation interface is equipped with multi-language support (Chinese, English, Spanish, Russian, etc.), and has complete functions such as production data real-time recording, fault self-diagnosis, alarm prompt and emergency safety protection.
The system can store hundreds of concrete mix ratio formulas, realize one-click call and automatic batching, greatly reducing the operation difficulty and human error, and realizing intelligent and standardized management of precast concrete production.
4. Superior Eco-Friendly & Energy-Saving Design: Green Production Compliance
Upgraded with a full set of environmental protection and energy-saving configurations, the HZN90 precast concrete batching plant fully meets the global green production environmental protection standards. It is equipped with a high-efficiency pulse bag type dust collector, fully sealed material conveying and storage system, and low-noise energy-saving motor, realizing dust-free production, low noise operation and low energy consumption.
Core Index
Specific Data
Total Installed Power
About 150kw
Energy Saving Rate vs Traditional Precast Mixing Equipment
20-25%
Dust Emission Concentration
≤10mg/m³
Noise Level
≤75dB (A)
The energy-saving and environmental protection design not only reduces the environmental impact of production, but also significantly lowers the daily operation cost of the plant, creating greater economic benefits for customers while achieving green production.
5. Robust Structure & Modular Design: Durable and Easy to Maintain

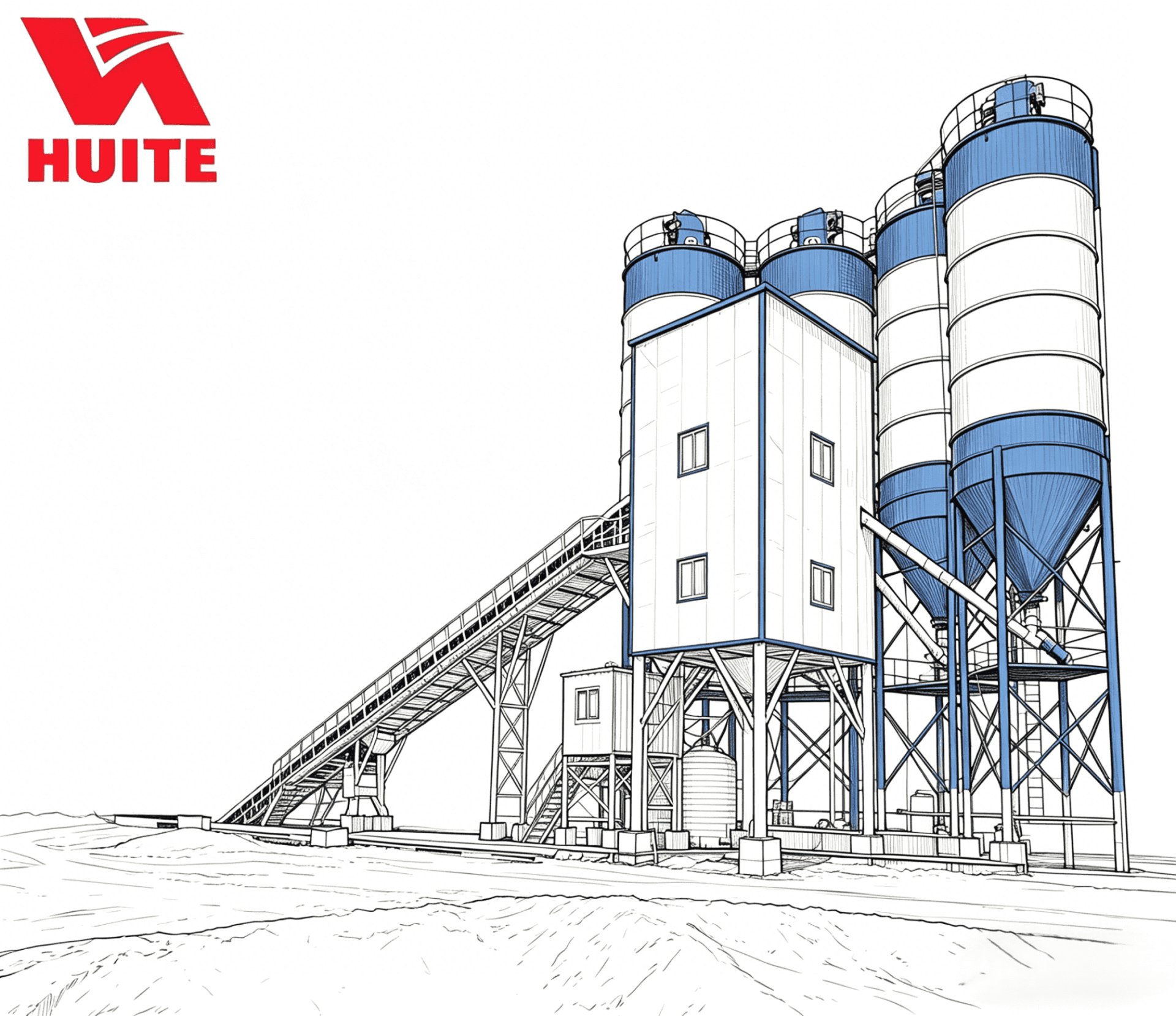

The HZN90 precast concrete batching plant adopts a heavy-duty high-strength steel structure frame with anti-corrosion shot blasting and paint spraying treatment, which has super strong bearing capacity and wear resistance, and can adapt to the harsh and continuous production environment of precast concrete factories for a long time. The whole plant adopts a modular design, with compact layout, small floor space and convenient on-site installation and debugging— the whole set of equipment can be installed and put into use in a short time.
Key wearing parts are made of high-quality alloy materials with long service life, and all maintenance parts are designed with quick access and disassembly. The plant is provided with a 1.5-year warranty for the whole machine and lifelong technical support, effectively reducing the maintenance difficulty and later operation and maintenance cost of customers.
6. Strong Adaptability & Customizable Configuration: Meets Personalized Precast Production Needs
The HZN90 precast concrete batching plant is specially designed for precast concrete production scenarios, and is perfectly adapted to the production of various precast components such as precast concrete beams, columns, slabs, wall panels and prefabricated staircases. It is suitable for medium and large-scale precast concrete production projects with a daily concrete demand of 500-800m³, and can also be flexibly configured according to customers' actual production needs (including aggregate bin expansion, feeding mode replacement, discharge height adjustment, etc.).
Professional technical team provides one-stop customized solution design, from plant layout to equipment configuration, all tailored to the customer's production site and process requirements, fully meeting the personalized precast concrete production needs of global customers.
