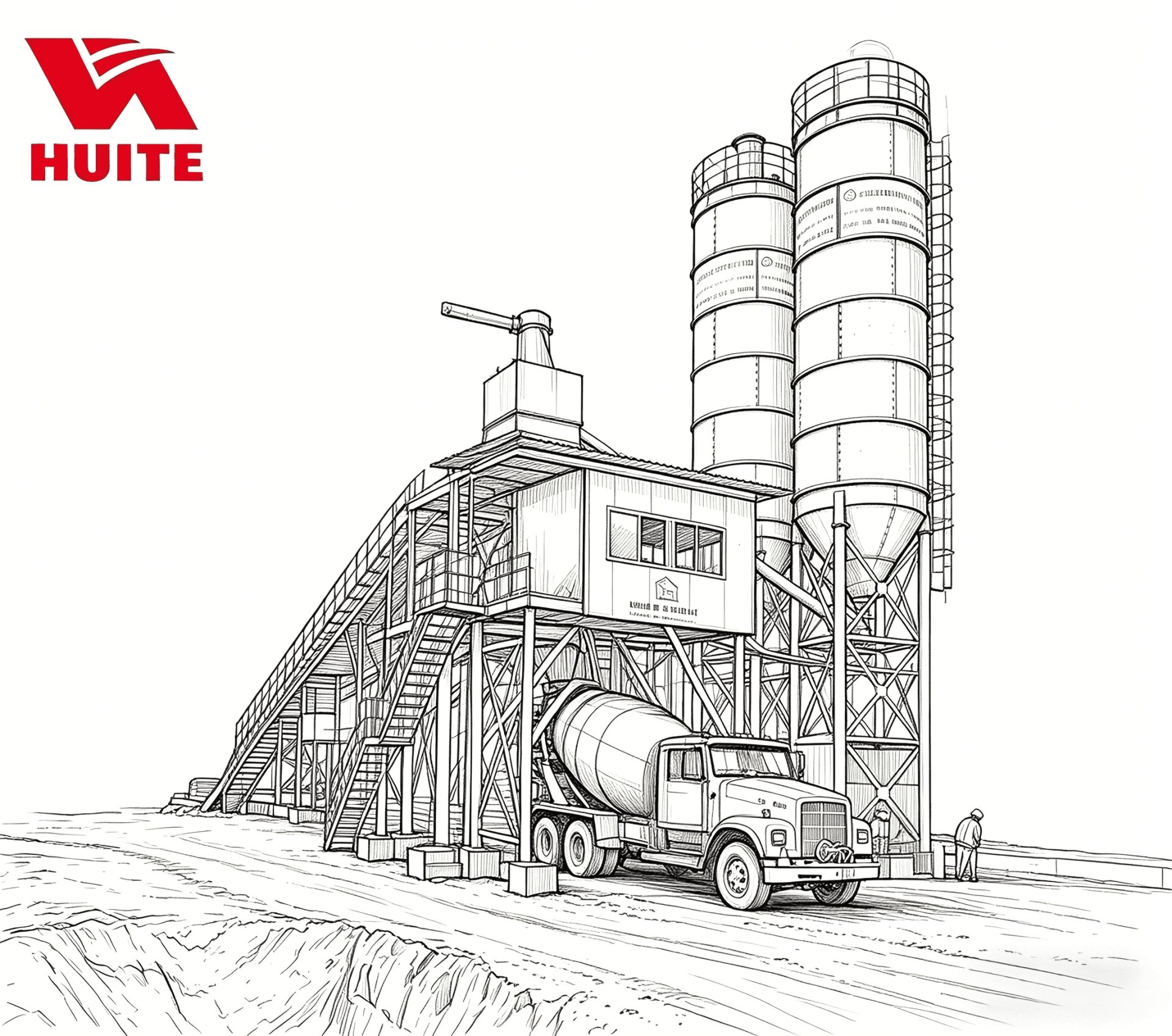

Main ComponentsHUITE HZS90 stationary concrete batching plant is composed of the following core components, all of which are selected from well-known brand products and integrated through strict testing to ensure long-term stable and efficient operation of the equipment, meeting the high-standard production demands of large-scale construction projects.

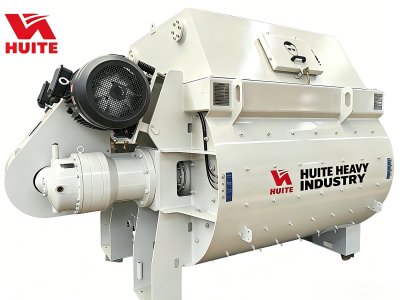

Mixing System: JS1500 twin-shaft forced concrete mixer (core mixing unit), with a mixing
capacity of 1500L per cycle, featuring strong shearing force, uniform mixing effect and high mixing efficiency. It is equipped wi
th a wear-resistant liner and high-strength mixing blades, which can effectively extend the service life and ensure stable mixing quality even under long-term continuous operation.

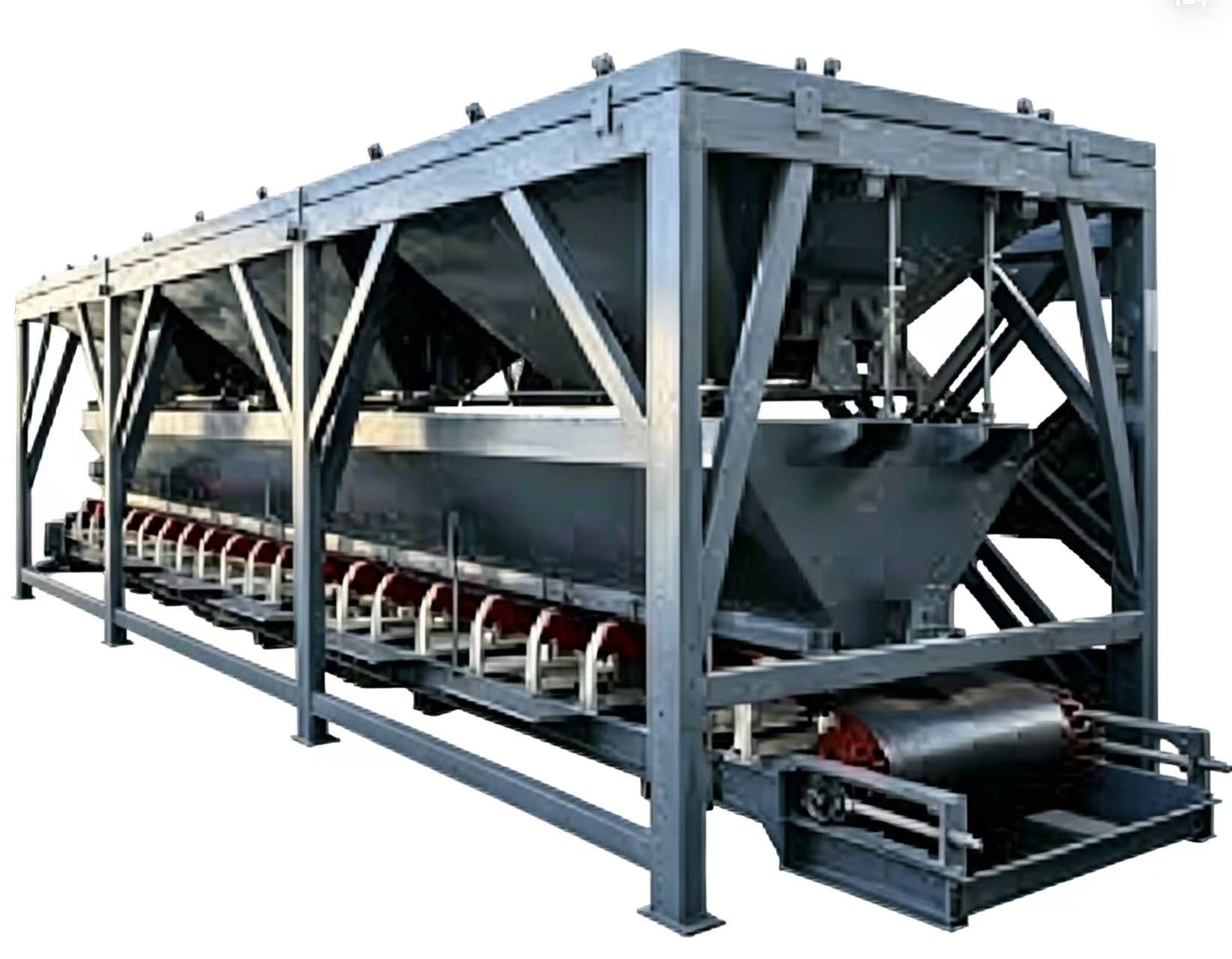

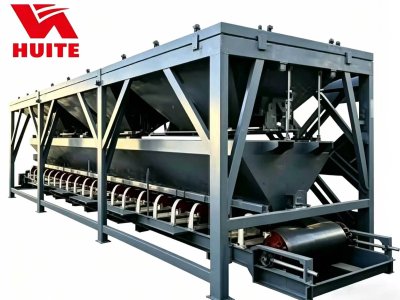

Aggregate Batching System: PLD2400 high-precision aggregate hopper (4 bins), with a batching capacity of 2400L, which can realize
accurate weighing and stable feeding of four kinds of aggregates (coarse sand, fine sand, gravel, crushed stone) at the same time. The sealed structure design effectively reduces dust leakage and ensures the cleanliness of the production.
Weighing System: High-precision electronic weighing modules for aggregates, cement, water and additives, with automatic compensation and error correction functions. The weighing hopper is made of high-quality steel plate with anti-corrosion treatment, ensuring accurate weighing and stable performance. The weighing data is real-time transmitted to the control system for synchronous recording and monitoring.

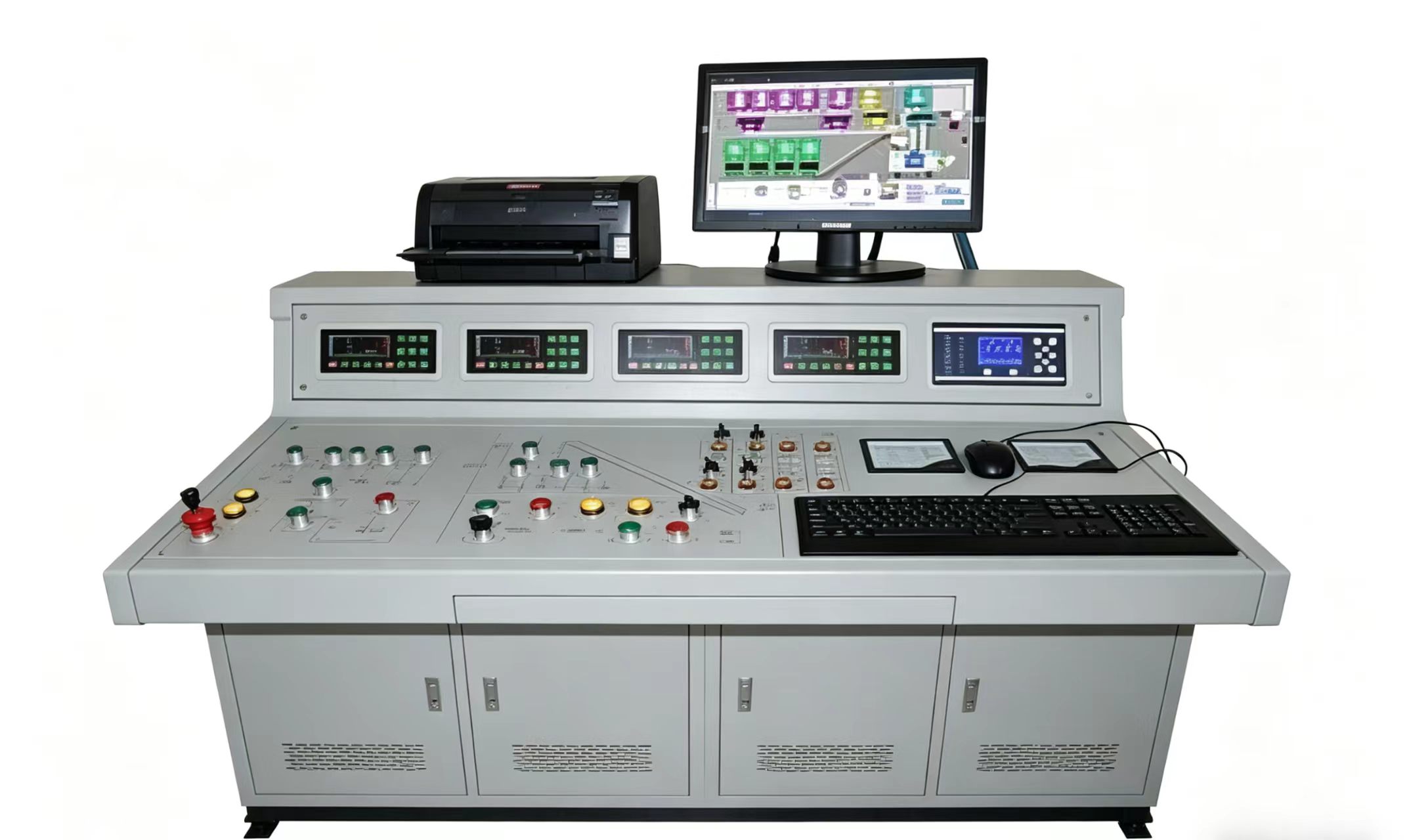

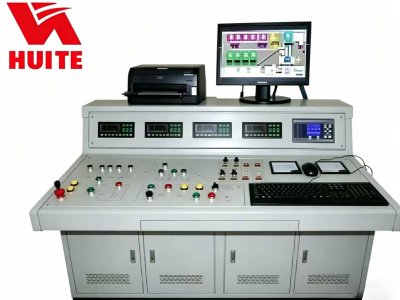

Control System: Intelligent PLC control system with industrial computer, touch screen operation

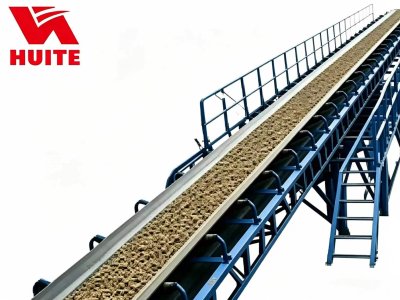

Conveying System
Includes high‑capacity belt conveyors for aggregates, fully enclosed screw conveyors for cement and fly ash, and dedicated delivery pumps for water and additives, ensuring efficient and pollution‑free transmission.
Core Advantages
High Efficiency & Large Capacity
The HUITE HZS90 stationary concrete batching plant is equipped with a JS1500 twin-shaft compulsory mixer and a PLD2400 aggregate hopper, with a theoretical productivity of 90 m³/h and an actual production efficiency of 80-85 m³/h under standard working conditions. It can realize 24-hour continuous operation, which is suitable for large-scale concrete production and can effectively shorten the construction period.
Stable & Reliable Mixing Performance
The JS1500 twin-shaft mixer adopts an optimized mixing structure, with a mixing time of ≤ 60 seconds per cycle, ensuring that the concrete is mixed uniformly and the homogeneity reaches ≥95%. The wear-resistant liner and high-strength mixing blades are made of special alloy materials, with a service life of more than 8000 working hours, reducing the frequency of component replacement and maintenance costs.
High-Precision Weighing & Stable Proportioning
Matching high-precision electronic weighing modules and professional weighing sensors, the weighing accuracy reaches: aggregate ±2%, cement ±1%, water ±1%, additive ±1%. The automatic compensation and error correction function can effectively avoid weighing errors caused by environmental factors (temperature, humidity) and material characteristics, ensuring stable concrete quality and reducing material waste by 3-5% compared with ordinary equipment.
Intelligent Control & Humanized Operation
The intelligent PLC control system adopts a humanized touch screen interface, which is simple and easy to operate. It can store up to 100 sets of concrete formulas (commonly C15-C60) and support one-click formula switching, data recording, production statistics and fault alarm. The remote control function allows operators to monitor and operate the equipment in the office, improving operation safety and convenience. The equipment is equipped with an automatic lubrication system, which can realize regular lubrication of key components and reduce manual maintenance workload.
Durable Structure & Low Failure Rate
The whole plant adopts high-quality steel structure with hot-dip galvanizing treatment, which has strong corrosion resistance and wind resistance, and can adapt to various harsh construction site environments (high temperature, low temperature, high humidity). All electrical components and core parts are selected from well-known international brands, with a failure rate of less than 1% per 1000 working hours, easy maintenance and low long-term operation cost.
Energy Saving & Environmental Protection
The high-efficiency energy-saving motor adopted by the equipment can save 8-10% of energy compared with ordinary motors. The centralized dust removal system with a dust removal efficiency of ≥99.5% effectively controls dust pollution, meeting international environmental protection standards. The water recycling system can reuse 80% of the cleaning water, reducing water resource waste. The noise reduction design of the mixer and motor ensures that the noise is ≤75 dB, which is in line with the environmental protection requirements of construction sites.
panel,automatic monitoring camera and remote control module. It adopts imported PLC chips and high-quality electrical components, realizing full-automatic batching, mixing, discharging and cleaning. It supports remote operation, data statistics, fault diagnosis and formula management, greatly improving production efficiency and operation convenience.
