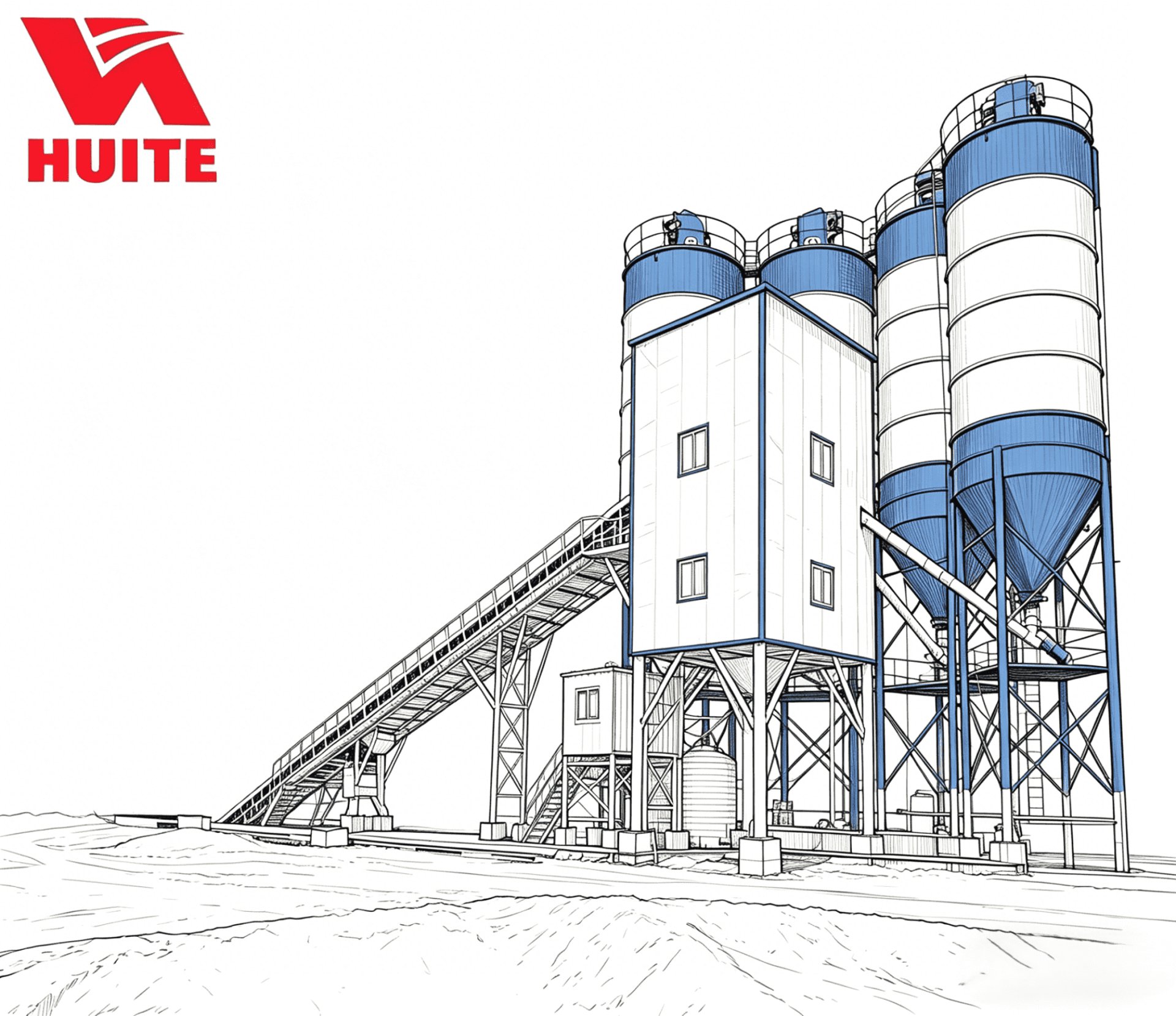

HUITE HZN120 Precast Concrete Batching Plant - High Precision for Large-Scale Precast Production HUITE HZN120 precast concrete batching plant is a high-end modular concrete mixing equipment engineered for large-scale precast concrete production with high precision and efficiency requirements.

Main Components

1. All core components adopt internationally renowned brands and pass strict factory inspection to ensure stable long‑term running under heavy‑load continuous production.

2.


3. • Mixing System

4.

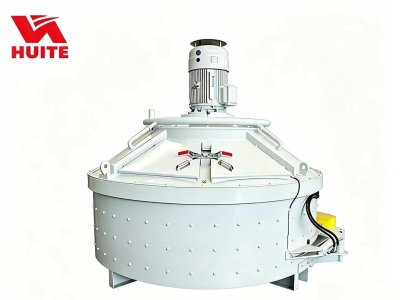

5. Equipped with JS2000 compulsory twin‑shaft mixer or optional high‑performance vertical‑shaft planetary mixer (2000L per batch). It provides strong shearing and stirring force, uniform mixing, and excellent adaptability to stiff, semi‑dry, high‑strength, and flowing precast concrete. Wear‑resistant alloy liners and high‑strength mixing blades extend service life and ensure consistent output.

6.


7. • Aggregate Batching System

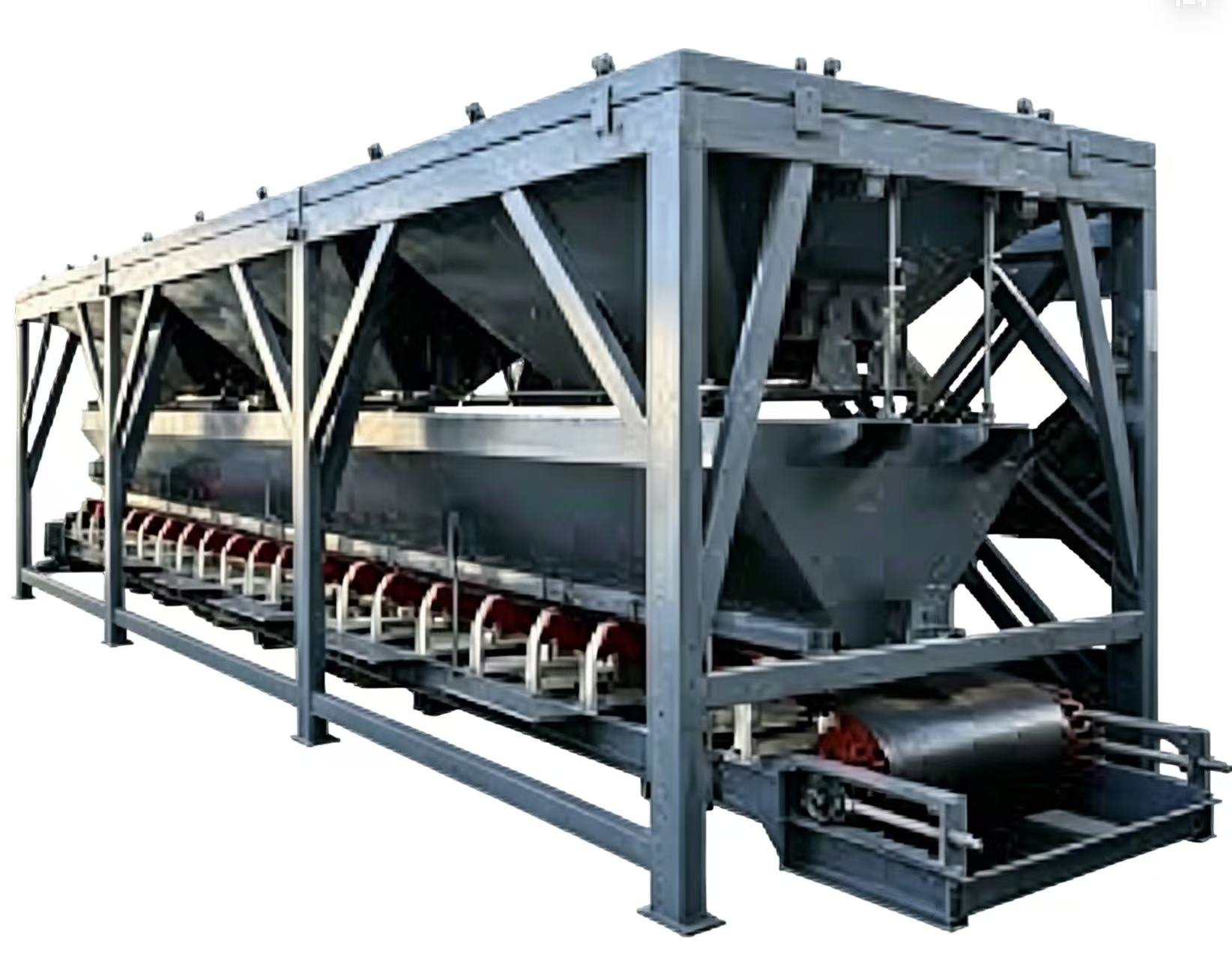

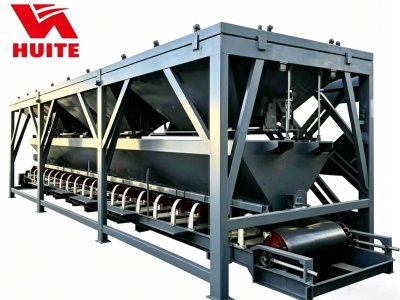

8. PLD3200 high‑precision aggregate batcher with 4 sealed bins supports simultaneous weighing and feeding of sand, gravel, crushed stone, and other aggregates. Fully enclosed structure reduces dust emission and keeps the working area clean.

9.


10. • Weighing System

11. High‑precision electronic weighing units for aggregate, cement, water, and admixtures with automatic compensation and real‑time error correction. Anti‑corrosion steel weighing hoppers maintain long‑term accuracy. Real‑time data transmission supports full‑process monitoring and production record keeping.

12.


13. • Control System

14.

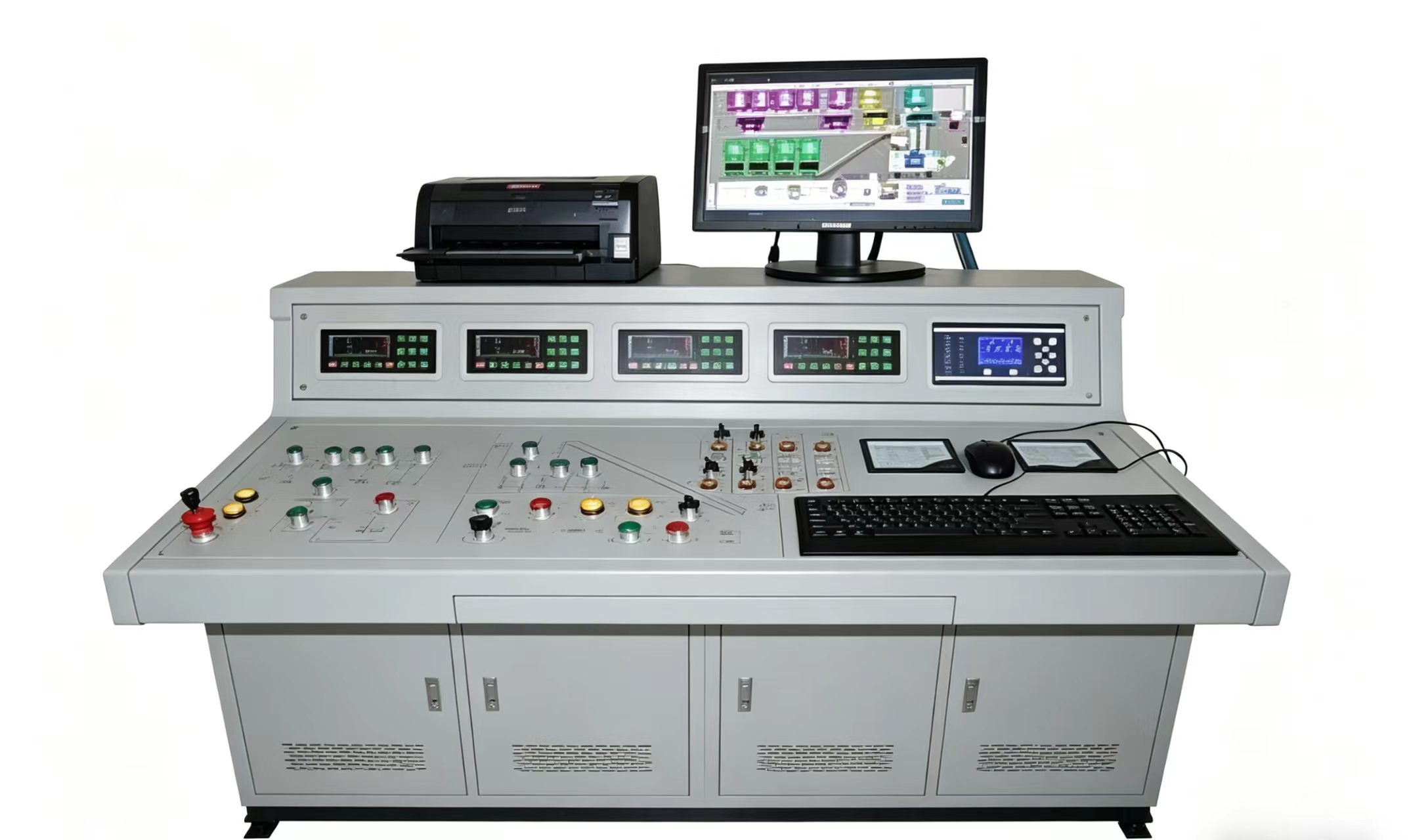

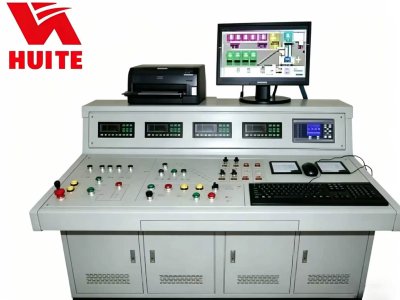

15. Intelligent PLC control system with industrial computer, touchscreen HMI, and fault self‑diagnosis. Built with imported high‑performance chips and reliable electrical parts to realize fully automatic batching, mixing, discharging, and cleaning. Supports formula storage, data statistics, remote monitoring, and centralized management.

16.


17. Conveying System

18.

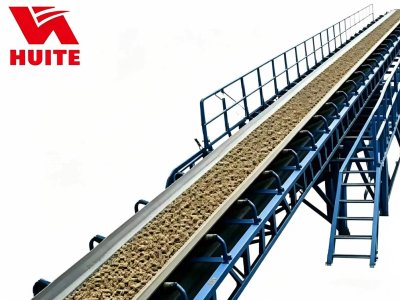

19. Includes high‑capacity belt conveyors for aggregates, fully enclosed screw conveyors for cement and fly ash, and dedicated delivery pumps for water and additives, ensuring efficient and pollution‑free transmission.

Core Advantages

1. Optimized for Large‑Scale Precast Production

2. Tailored for stiff, semi‑dry, high‑strength, and flowing concrete used in precast beams, columns, pipes, wall panels, blocks, and utility structures. Ensures high homogeneity and stable mold‑filling performance.

3. Stable Mixing Quality & Long Service Life

4. Mixing cycle approx. 60 seconds; concrete homogeneity ≥96%. Long‑wearing parts reduce replacement frequency and maintenance costs.

5. Ultra‑High Weighing Precision & Consistent Proportioning

6. Professional weighing sensors deliver industry‑leading accuracy:

7. • Aggregate: ±2.0%

8. • Cement: ±1.0%

9. • Water: ±1.0%

10. • Admixture: ±1.0%

11. Automatic error correction eliminates deviations caused by temperature, humidity, or material features, improving concrete stability and reducing material waste.

12. Intelligent Operation & Easy Control

13. User‑friendly touchscreen supports formula storage, one‑click switching, automatic production recording, and real‑time fault alarms. Automatic centralized lubrication reduces manual labor.

14. Compact Layout & Fast Installation

15. Modular design saves space compared with traditional large plants. Installation period: 10–12 working days (excluding foundation). Professional commissioning ensures quick and standardized deployment.

16. Energy Saving & Eco‑Friendly

17. High‑efficiency motors lower power consumption. Ultra‑high dust removal rate and low noise meet global green construction requirements, suitable for urban and factory zones.

18. Low Failure Rate & Convenient Maintenance

19. Key electrical and hydraulic parts from international famous brands; low failure rate. Simple structure, easy maintenance access, and low long‑term operation cost.

FAQs

1. Q1: What large‑scale project scenarios fit the HZN120 batching plant?

2. A: It is ideal for large precast component factories, major infrastructure projects, high‑output precast beam yards, pipe and block plants, modular construction bases, and ready‑mix concrete suppliers requiring stable 120 m³/h concrete output.

3. Q2: Can this machine produce high‑grade precast concrete above C60?

4. A: Yes. It supports C15–C80 full‑grade concrete, especially stiff/semi‑dry and ultra‑high‑strength concrete for precast products, with uniform mixing and reliable strength.

5. Q3: Do you provide remote monitoring and after‑sales service?

6. A: Yes. We offer intelligent remote monitoring, on‑site installation, commissioning, systematic operator training, and 24/7 global technical support.

7. Q4: Can the HZN120 be customized for multi‑line precast production?

8. A: Yes. We support customized configuration of cement silo capacity, aggregate bin number, discharge height, multi‑port discharging, control system, and environmental protection devices to match multi‑line production.

9. Q5: How long is the service life of core wearing parts?

10. A: Core wearing parts adopt high‑strength wear‑resistant materials. Under normal use and maintenance, the service life of mixing blades and liners can reach 80,000–100,000 mixing cycles.

11. Q6: Is the HZN120 suitable for fixed factory and mobile site use?

12. A: Yes. Its compact modular structure is easy to transport, install, and relocate, suitable for both fixed factory and temporary large‑scale construction sites.

Why Choose HUITE HZN120 precast concrete batching plant?

1. HUITE has professional R&D and manufacturing experience, with ISO9001, CE and other international certifications. The HZN120 precast concrete batching plant brings stable performance and high return on investment for global users.

2. • High Output & Cost Efficiency

3. 120 m³/h output meets large precast and construction demands, with lower investment and operating cost than super‑large‑scale plants.

4. • Precast‑Specialized Heavy‑Duty Design

5. Tailored for large‑scale precast production, ensuring ideal workability, uniformity, and strength for mold casting and precast elements.

6. • Modular & Transport‑Friendly

7. Compact modular structure is easy to transport, install, and relocate, suitable for both fixed factory and temporary site use.

8. • Stable Components & Low Failure

9. World‑famous core parts and strict quality control minimize downtime and maintenance cost.

10. • Full‑Process Service & Global Support

11. One‑stop service from design, production, installation, training to after‑sales, ensuring worry‑free use worldwide.
