Structural Composition

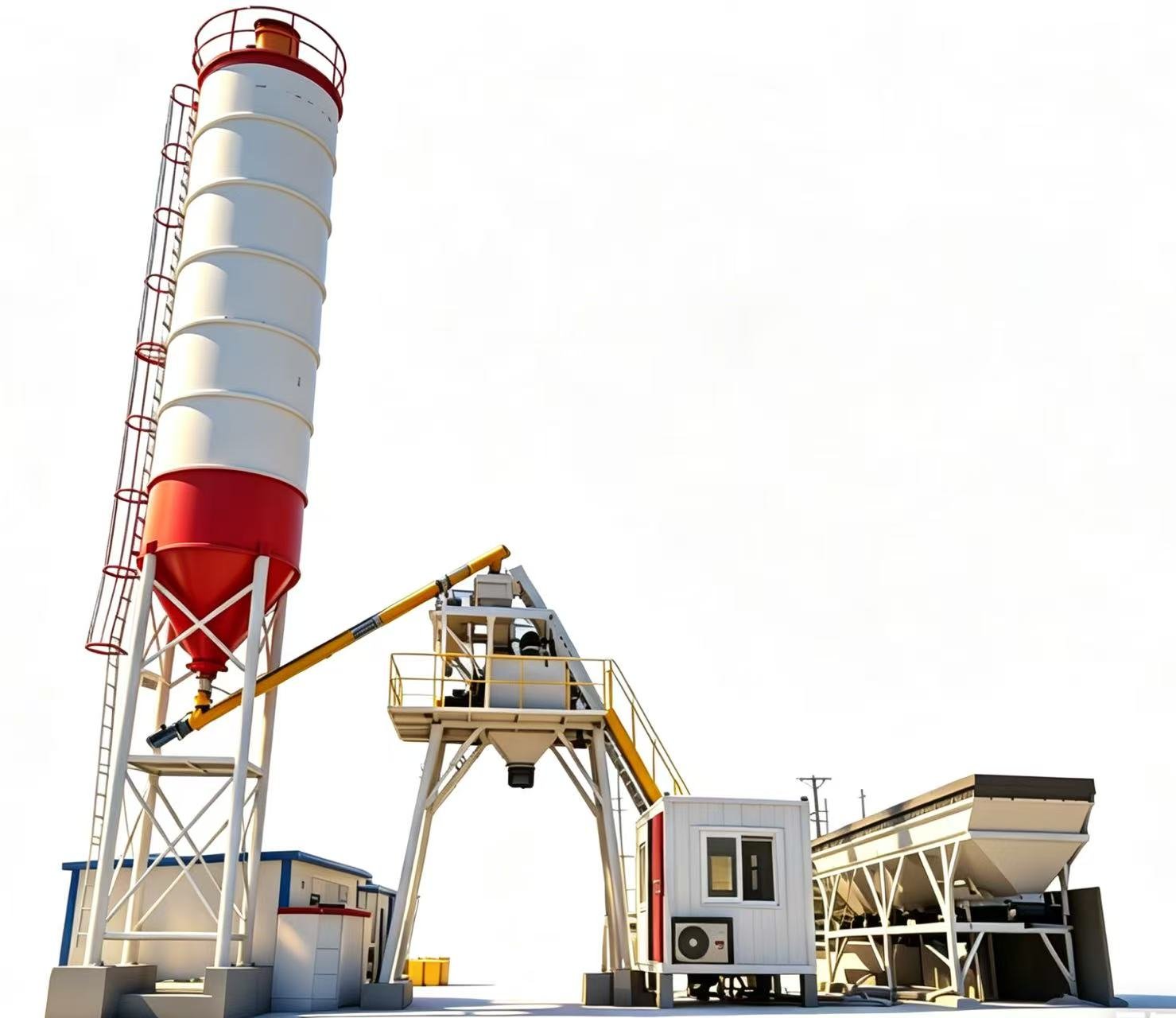

HZS35 Stationary Concrete Batching Plant is composed of six core systems and supporting auxiliary devices, forming a compact and efficient automatic concrete production line.

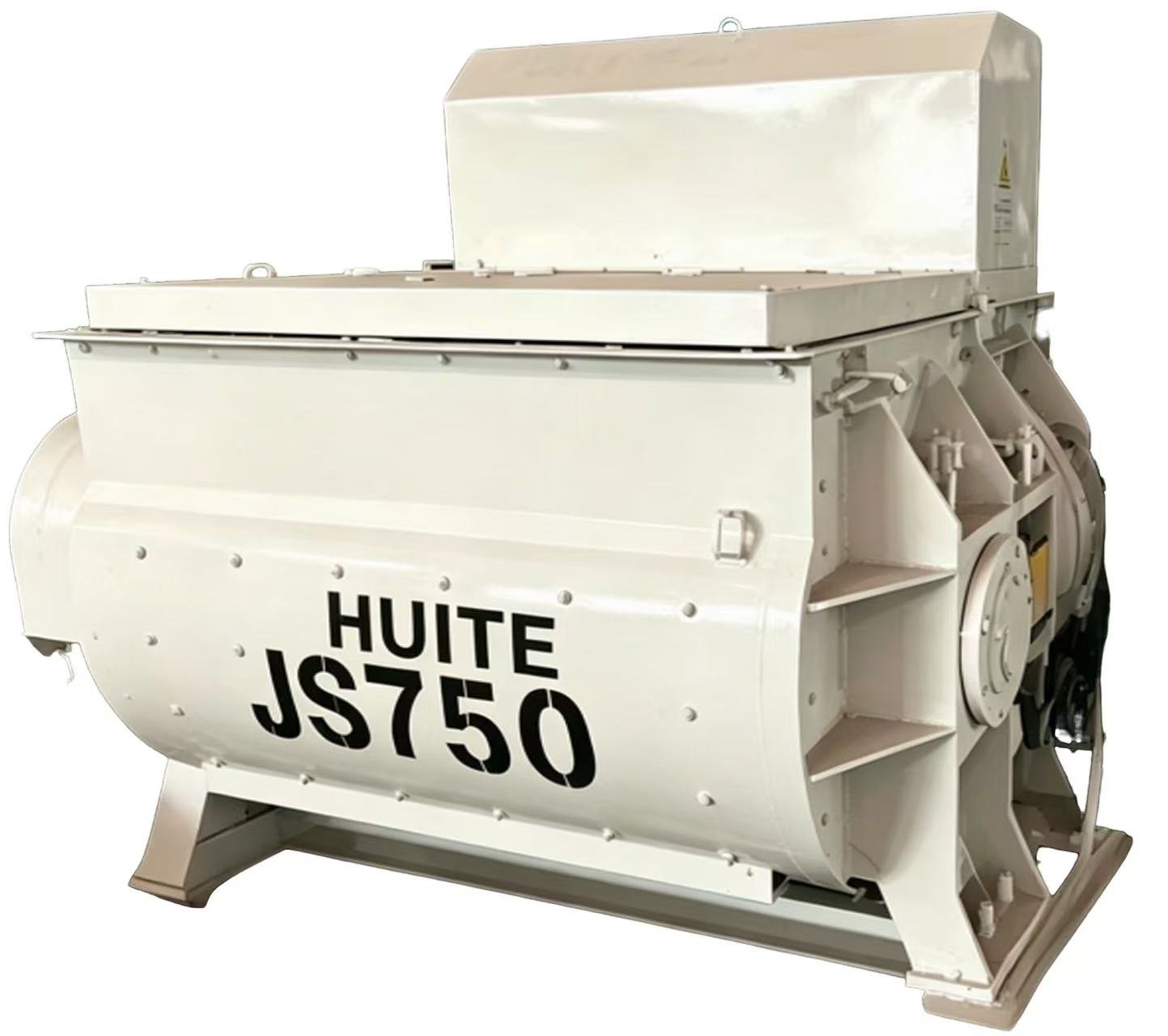

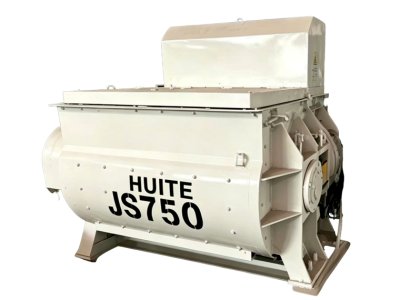

Mixing System
Equipped with one set of JS750 twin‑shaft compulsory concrete mixer, it features strong stirring force and uniform mixing quality. Optimized mixing structure, durable wearing parts and reliable shaft‑end sealing ensure stable performance and long service life, suitable for continuous small‑to‑medium batch production of various concrete grades.

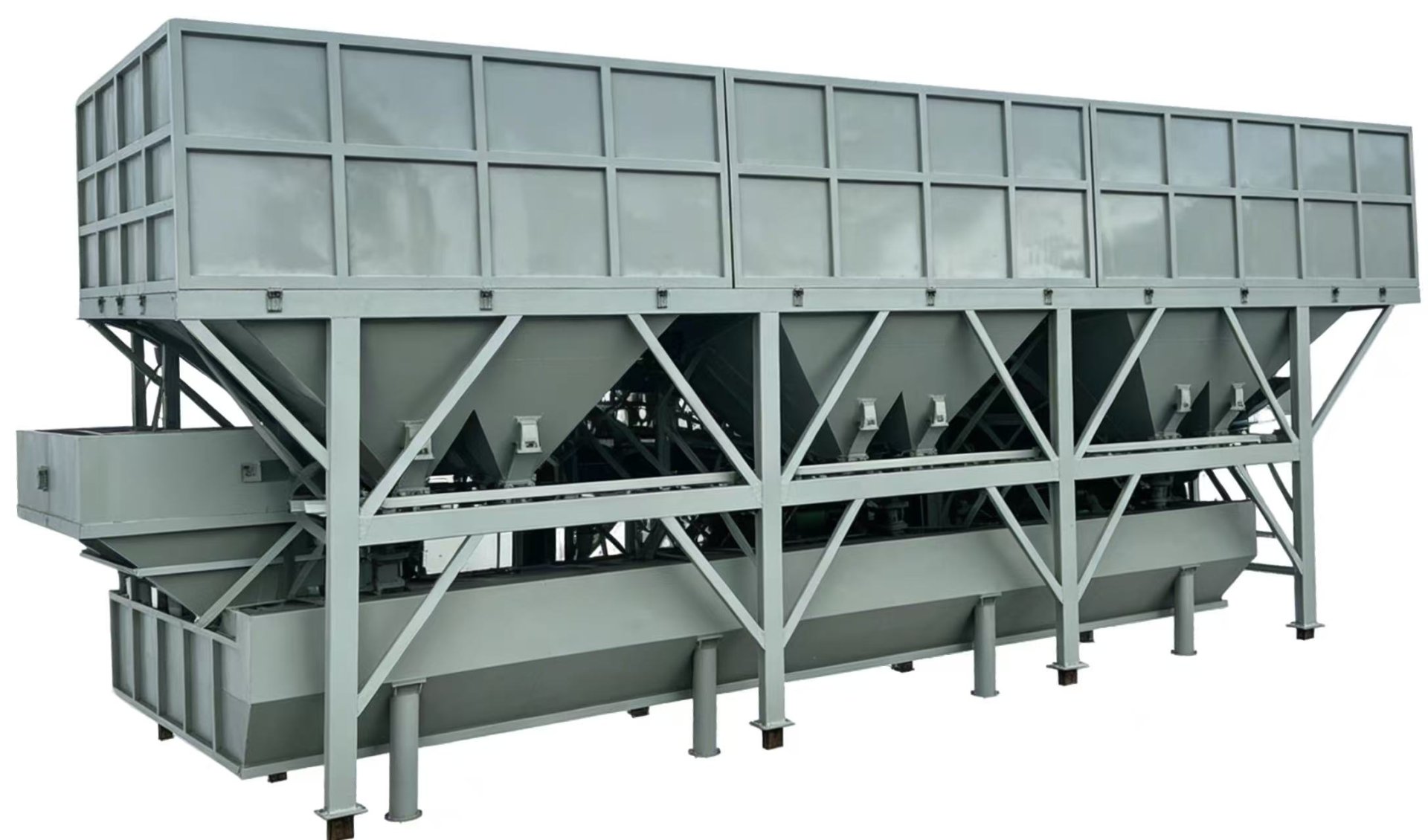

Batching System
Configured with one set of PLD1200 high‑precision aggregate batcher, it realizes orderly storage, accurate weighing and stable feeding of sand and gravel. Precise aggregate proportioning guarantees consistent concrete quality for medium‑small engineering and precast applications.

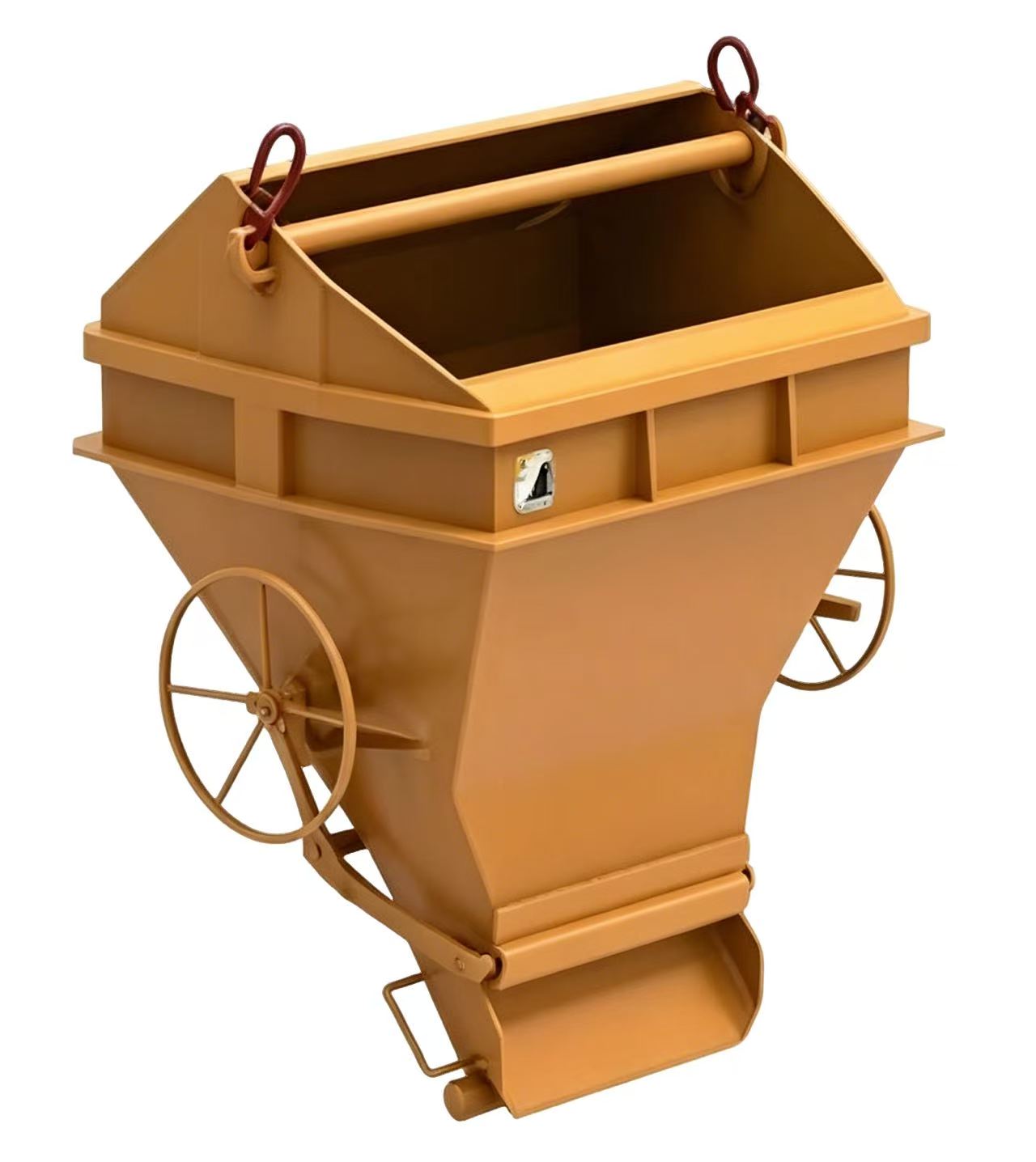

Conveying System
Adopts skip bucket aggregate conveying structure and enclosed screw conveyor for cement, fly ash and other powder materials. Water and additives are delivered by dedicated measuring pumps, forming a closed, low‑dust and efficient material conveying process.
Weighing System
Equipped with high‑precision weighing modules for aggregate, cement, water and additives respectively. With automatic weighing control and compensation, it ensures accurate dosing and stable concrete mix proportion throughout production.

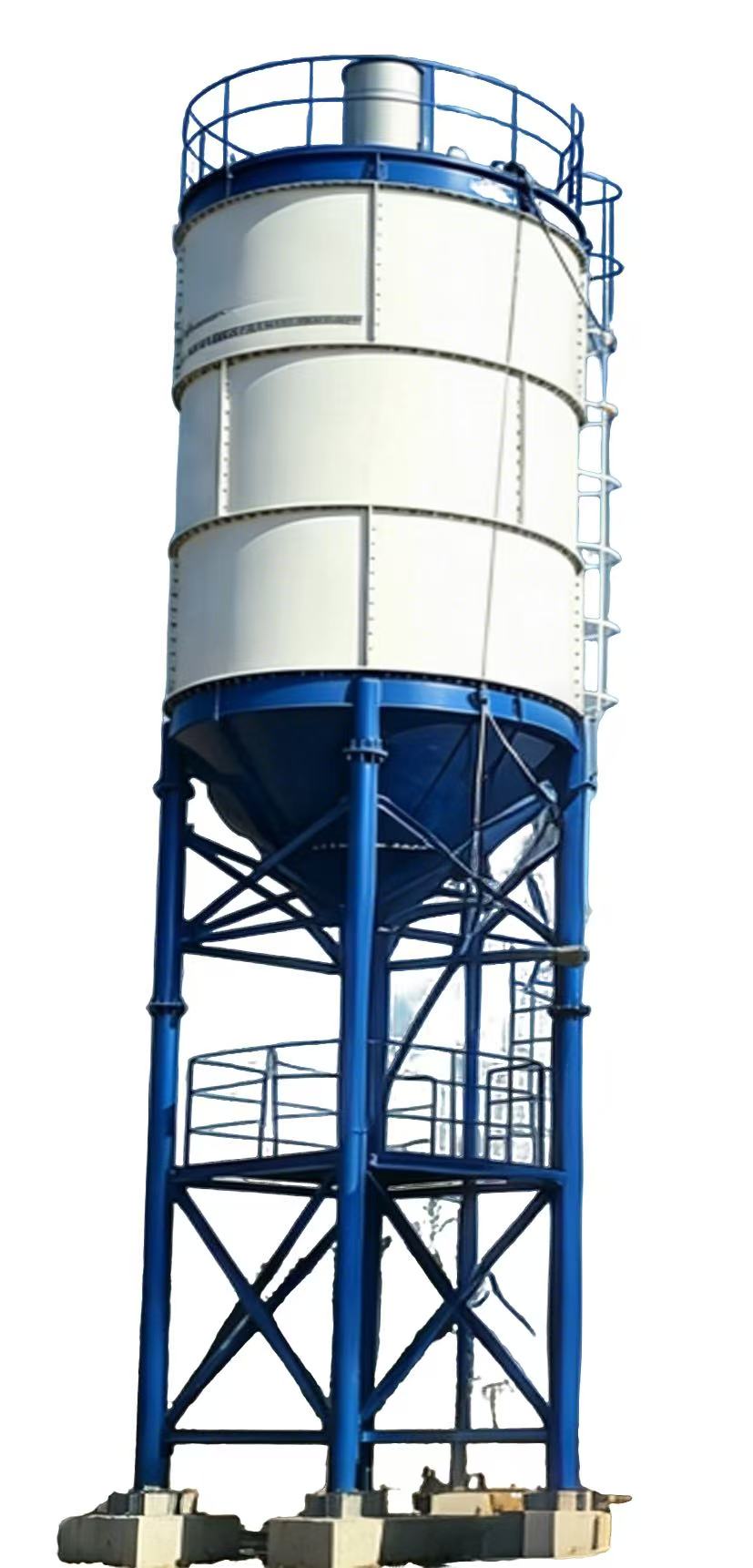

Storage System
Includes dedicated aggregate storage bins, sealed cement silos, and anti‑corrosion water and additive tanks. Closed structure reduces dust emission and raw material loss, ensuring safe and stable storage of all materials.

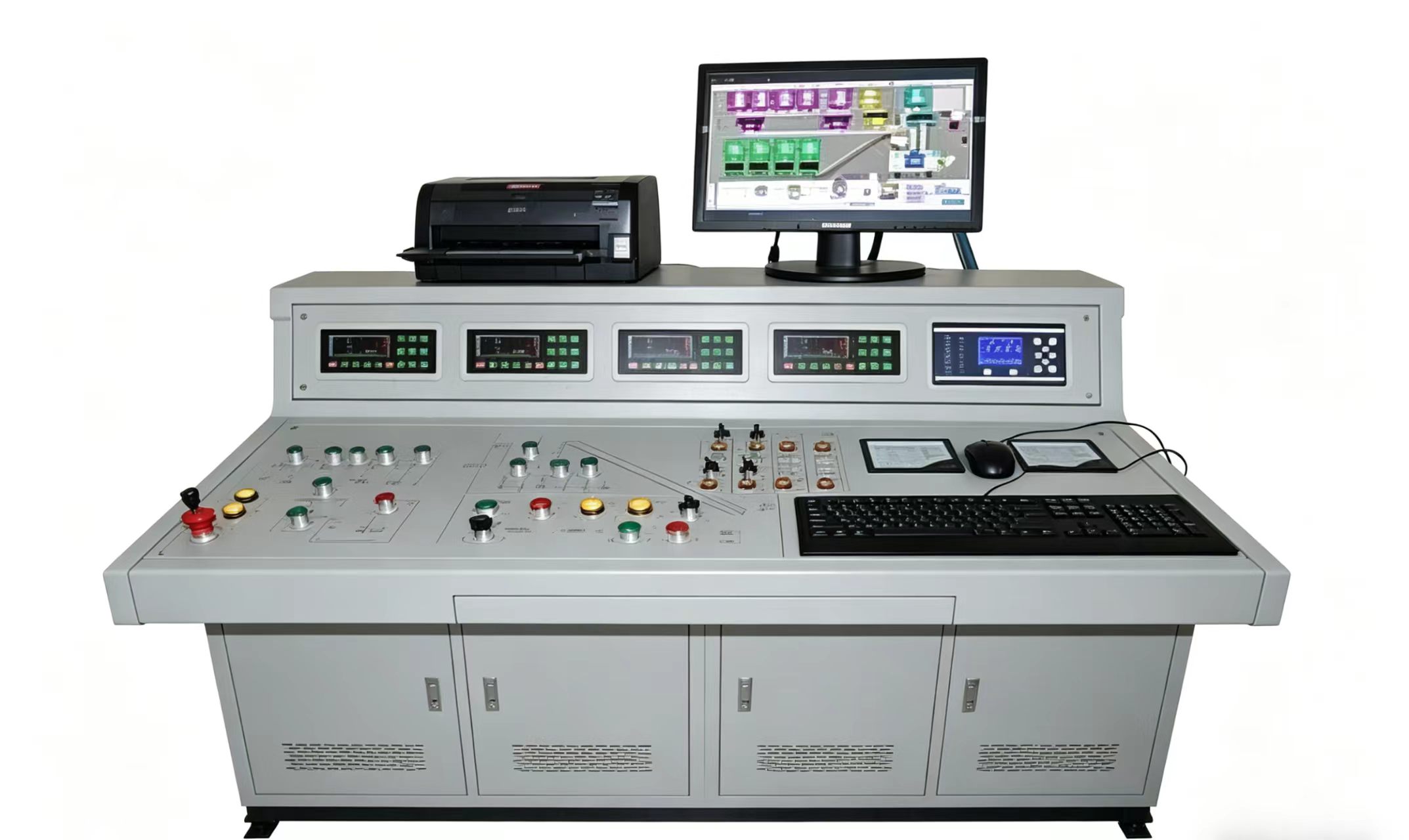

Control System
Adopts intelligent PLC automatic control system with computer, control cabinet and monitoring devices, supporting automatic and semi‑automatic operation. It realizes formula storage, one‑key switching, real‑time monitoring, data recording and fault alarm, ensuring stable and user‑friendly operation.
Core Advantages
Compact Structure & Flexible Application
With small footprint, reasonable layout and short installation cycle, HZS35 stationary concrete batching plant is ideal for limited sites and medium‑small batch production. It is widely used in rural construction, road maintenance, small bridges, precast plants and temporary working sites.
Stable Mixing & Reliable Quality
The twin‑shaft concrete mixer delivers strong shearing and stirring capacity, ensuring even mixing in each cycle. It produces homogeneous, workable concrete steadily and supports long‑term reliable use.
High‑Precision Weighing & Consistent Proportioning
Weighing accuracy reaches ±2% for aggregates and ±1% for cement, water and additives. Precise batching ensures stable concrete performance and reduces material waste effectively.
Intelligent Control & Easy Operation
Fully automatic control system realizes automatic batching, mixing and discharging. Intuitive interface and simple operation lower labor intensity and improve production efficiency.
Durable Structure & Low Failure Rate
Heavy‑duty steel frame and high‑quality electrical components provide strong rigidity and anti‑vibration performance. The plant adapts to various job‑site environments with low failure rate and easy maintenance.
Eco‑Friendly & Humanized Design
Powder materials run in sealed state to reduce dust and noise. Optional centralized dust removal, automatic lubrication and safe circuit design enhance operational safety and convenience.
