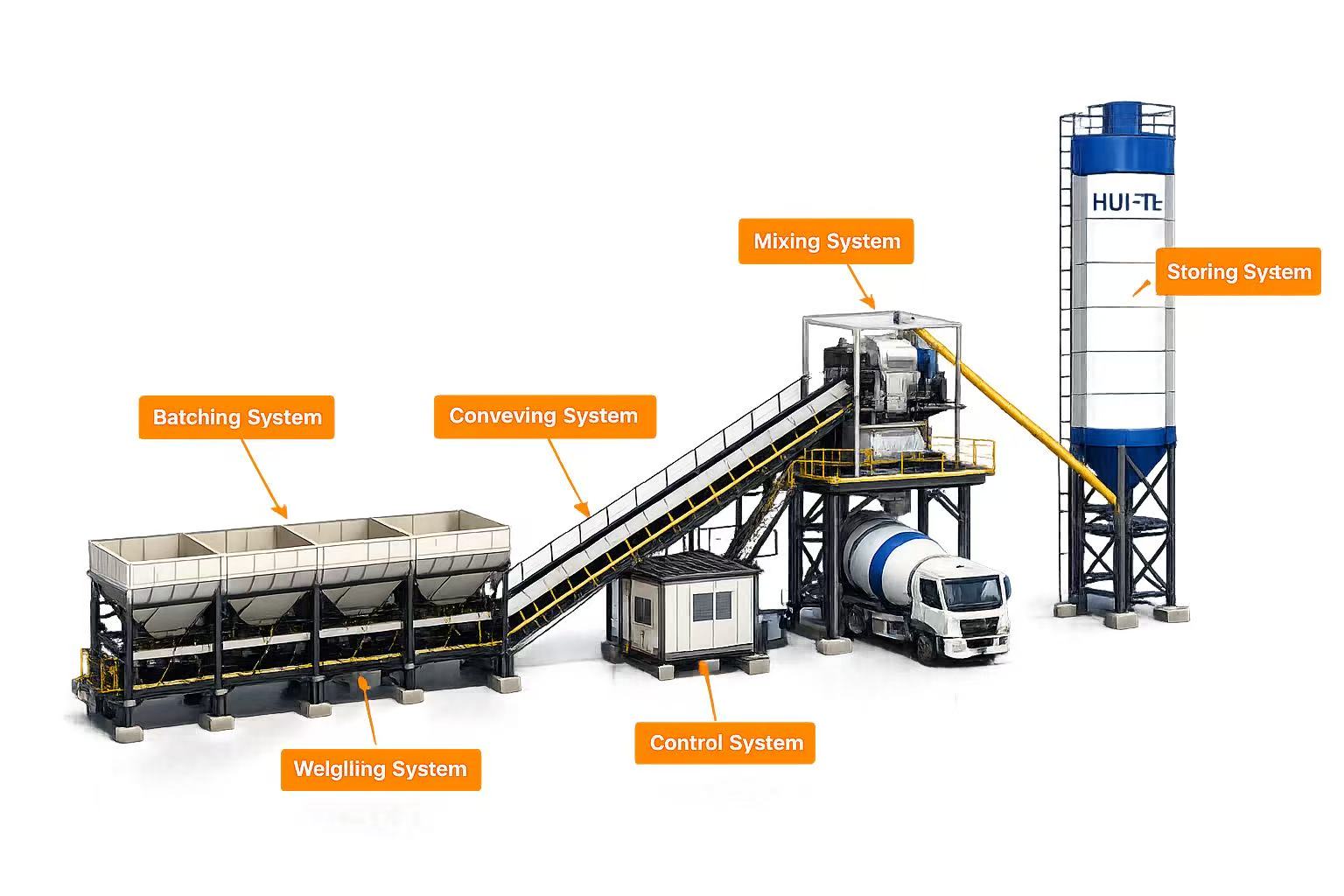

Main Components

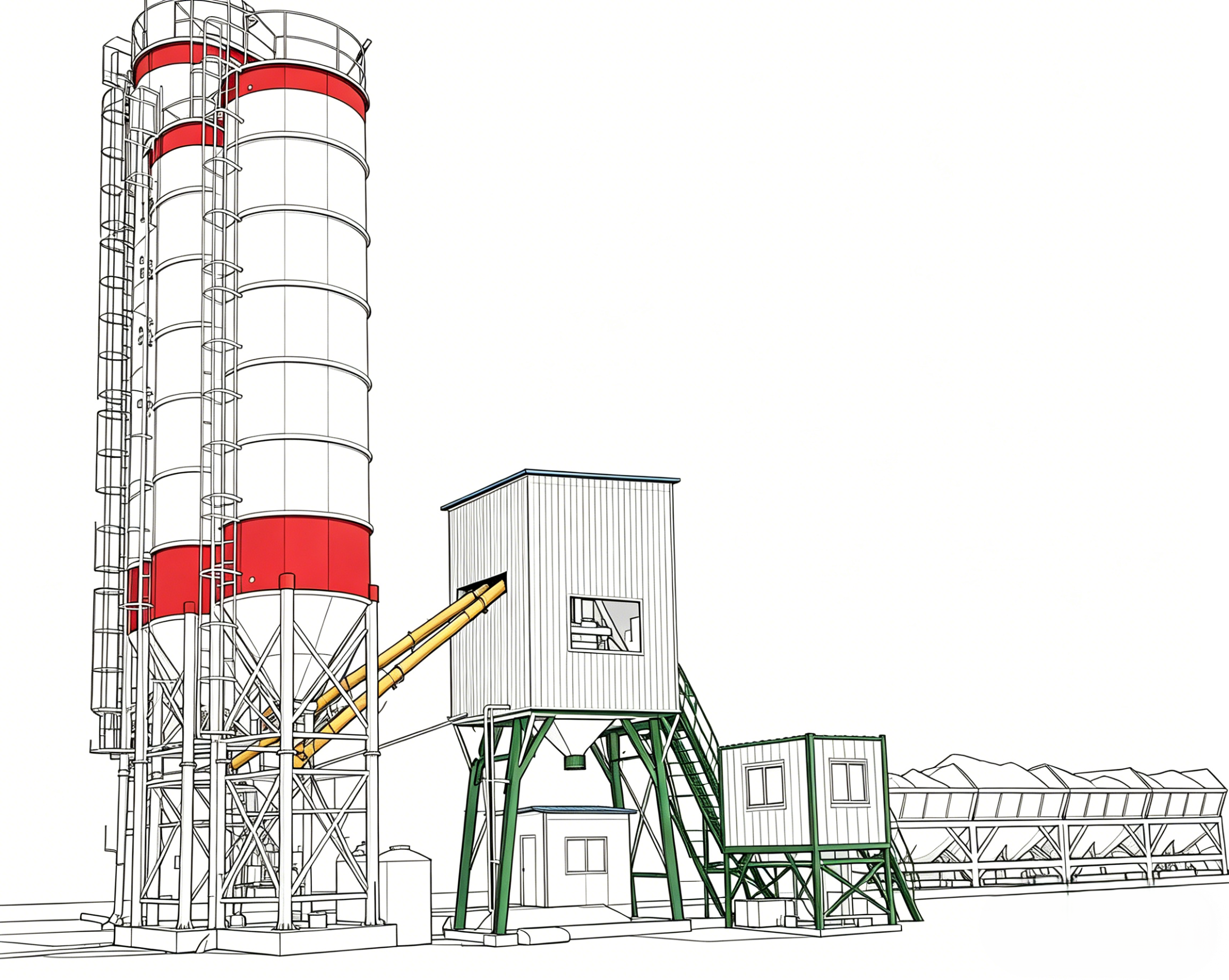

HZS50 Stationary Concrete Batching Plant is composed of high-quality, carefully selected core systems and components, all integrated to ensure stable, efficient and continuous output for medium-scale construction projects. Each component of the HZS50 Stationary Concrete Batching Plant undergoes strict quality inspection to meet industrial standards, guaranteeing long-term reliable operation:

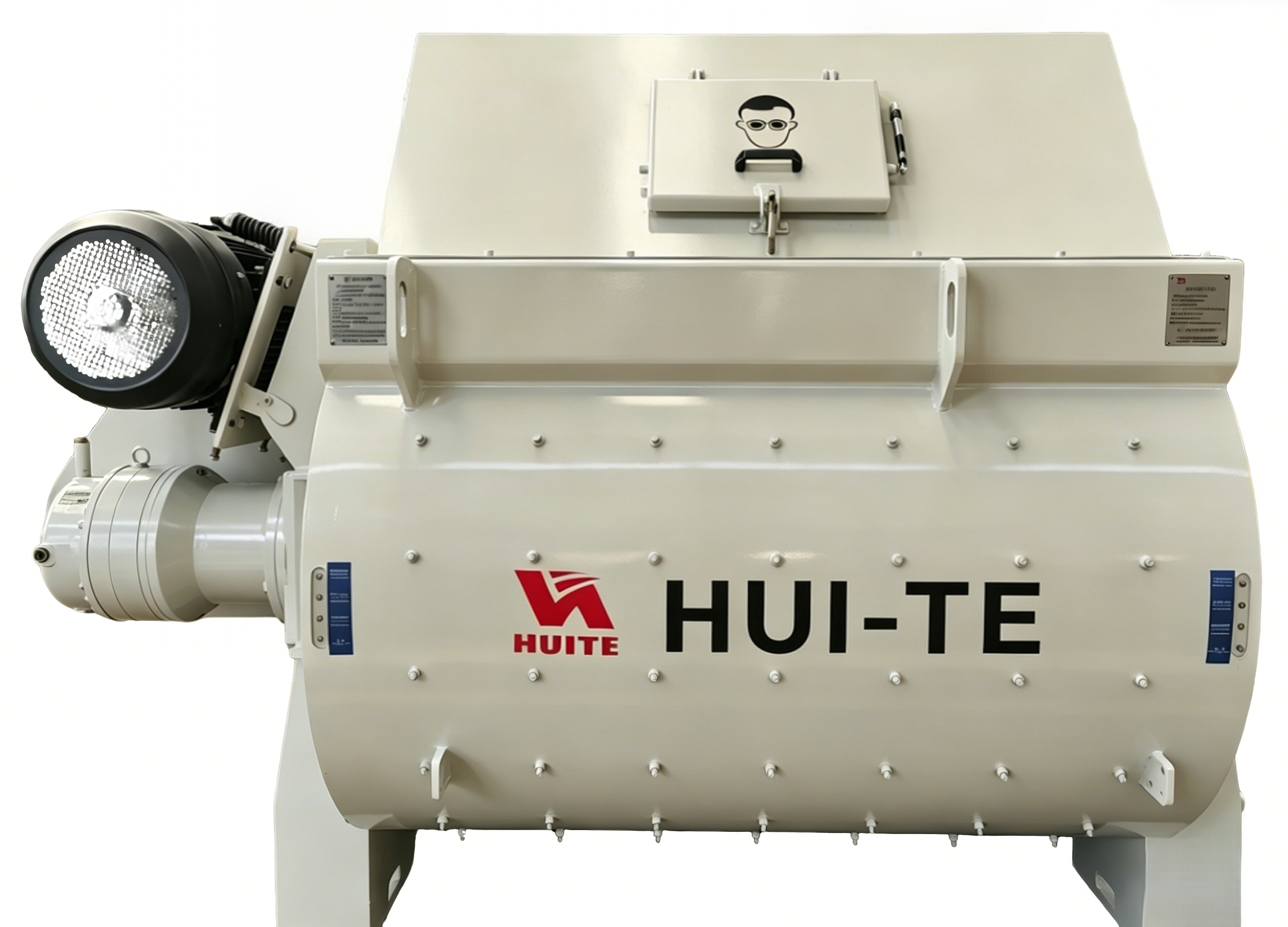

1. Mixing System: JS1000 twin-shaft concrete mixer, the core component of HZS50 Stationary Concrete Batching Plant.

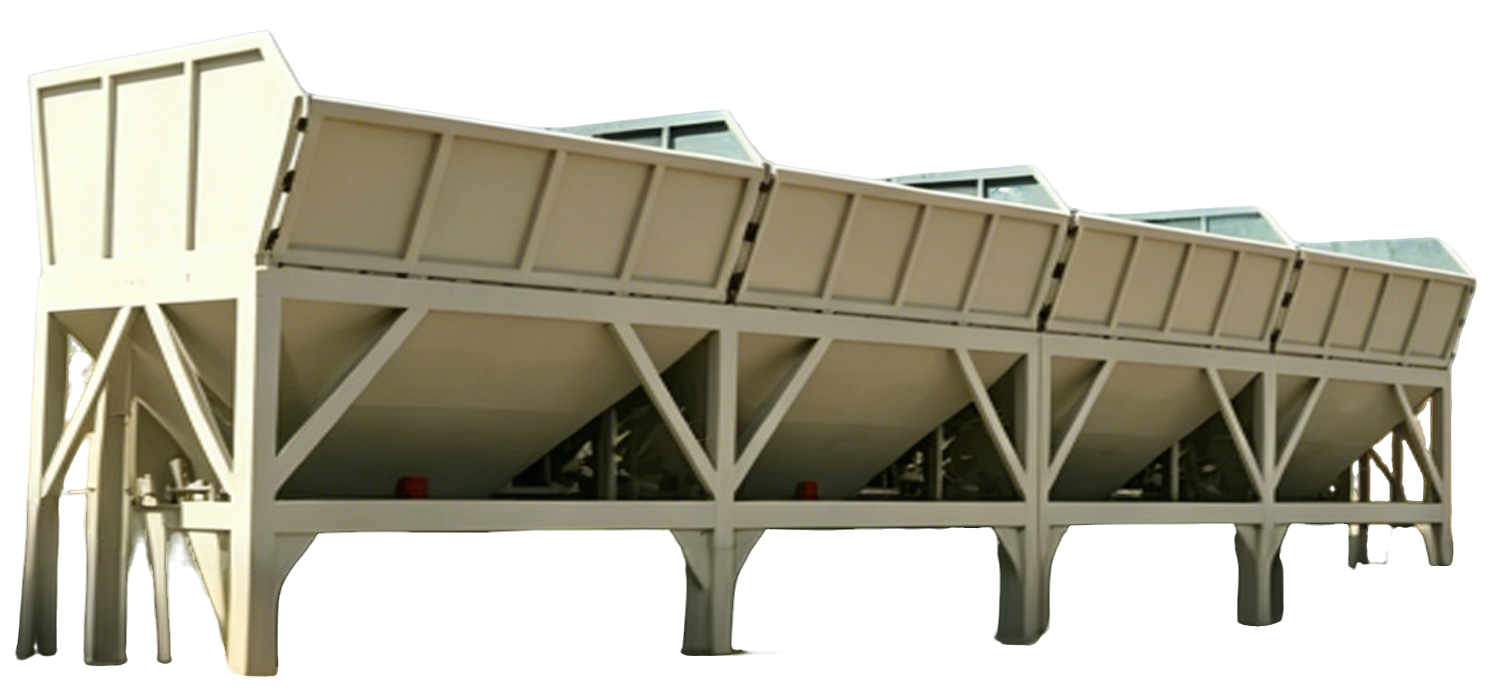

2. Batching System: PLD1600 automatic batching machine for accurate aggregate distribution.
3. Weighing System: High-precision sensors ensure accurate measurement of aggregate, cement, water and additives.
4. Conveying System: Skip bucket for aggregate and sealed screw conveyor for powder materials.
5. Storage System: Aggregate bins, cement silos with dust collector and arch breaker, water tank and additive tank.

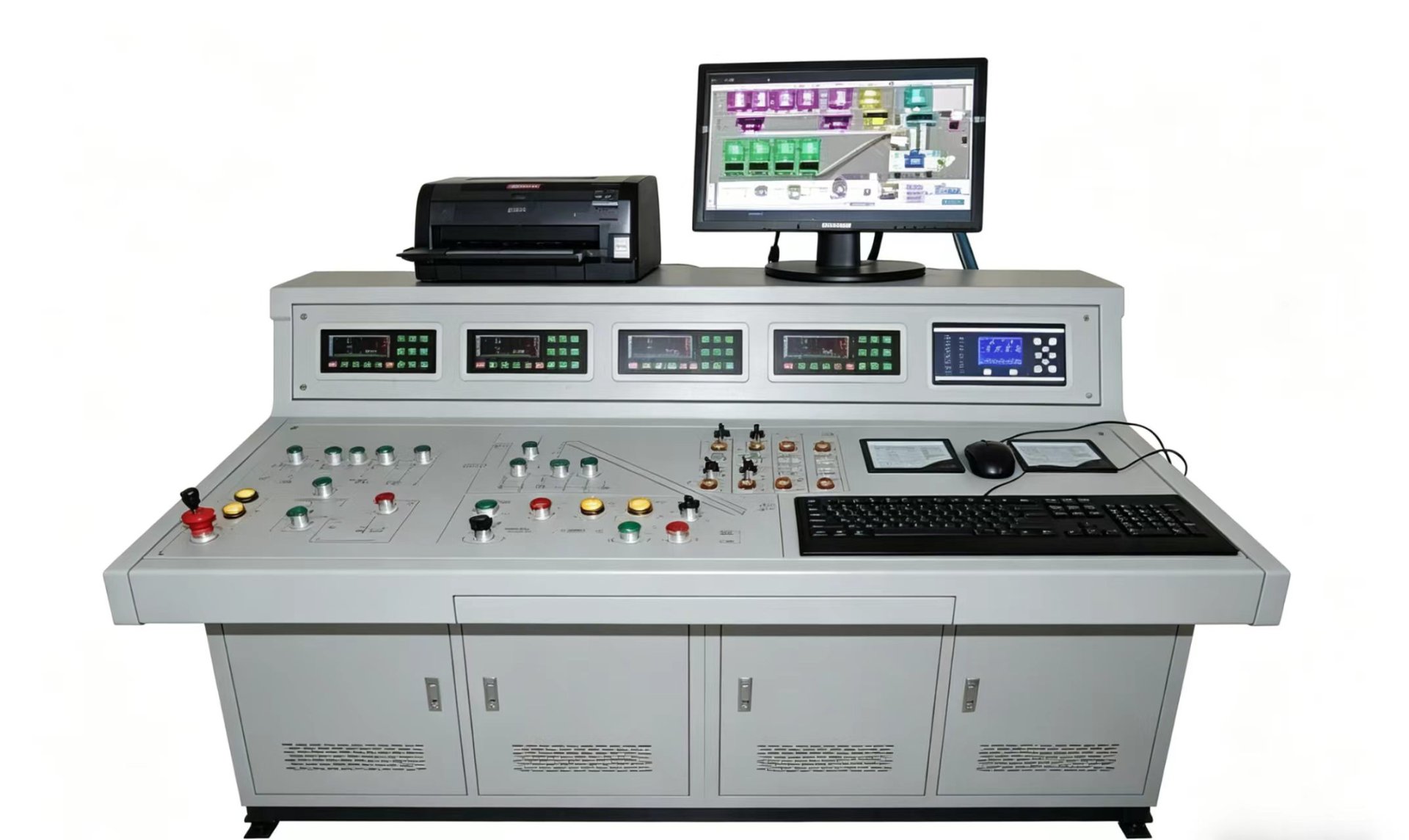

6. Control System: Intelligent control cabinet for full-process automatic production management.
Core Advantages
As a high-performance medium-scale mixing equipment, theHZS50 Stationary Concrete Batching Plant has obvious advantages in structure, performance, operation and environmental protection, which can fully meet the needs of medium-scale construction projects:
1. Modular Structure & Wide Application
HZS50 Stationary Concrete Batching Plant adopts a modular design, with compact layout, small occupation area, convenient installation and short commissioning time. The HZS50 Stationary Concrete Batching Plant can adapt to medium-scale construction sites and limited working areas, and is widely used in ready-mix concrete plants, urban road and bridge construction, municipal engineering, precast component projects and residential community construction.
2. Stable & Efficient Mixing Performance
HZS50 Stationary Concrete Batching Plant is matched with a JS1000 twin-shaft concrete mixer, with an optimized mixing structure. The automatic cycle time of each batch is 72s, which can realize even mixing of each batch of concrete. The HZS50 Stationary Concrete Batching Plant can stably produce high-quality concrete, suitable for long-term continuous operation, and effectively improve production efficiency.
3. High Weighing Accuracy & Less Material Waste
Equipped with a PLD1600 batching machine and high-precision weighing sensors, theHZS50 Stationary Concrete Batching Plant achieves excellent weighing accuracy: aggregate ±2%, cement ±1%, water ±1%, additive ±1%. The precise proportioning of the HZS50 Stationary Concrete Batching Plant not only ensures the stability of concrete quality, but also reduces the waste of raw materials and controls the production cost.
4. Intelligent PLC Control & Easy Operation
HZS50 Stationary Concrete Batching Plant is equipped with a self-developed intelligent control system, which supports dual control modes, flexible formula management, online parameter modification, automatic drop compensation and fault self-diagnosis. The user-friendly interface of the HZS50 Stationary Concrete Batching Plant reduces the operation difficulty, and even new operators can quickly master the operation skills.
5. Durable Structure & Low Maintenance Cost
All core parts of the HZS50 Stationary Concrete Batching Plant are selected from well-known domestic and international brands, with strong wear resistance and stability, and low equipment failure rate. The HZS50 Stationary Concrete Batching Plant is equipped with an automatic centralized lubrication system, which is easy to maintain and effectively reduces the long-term operation and maintenance cost of the equipment.
6. Eco-Friendly & Humanized Design
HZS50 Stationary Concrete Batching Plant adopts a fully sealed design for powder conveying, which effectively reduces dust and noise pollution and meets global environmental standards. TheHZS50 Stationary Concrete Batching Plant can be equipped with an optional centralized dust removal system for cement silos according to customer needs. The whole plant has a scientific layout, aviation plug circuit design and comprehensive safety protection measures, which protect the safety of operators and realize humanized operation and maintenance.
