HUITE HZS210 concrete batching plant, 210m³/h stationary concrete mixing plant, JS3500 twin-shaft concrete mixer plant, eco-friendly concrete batching plant, high precision concrete batching plant for mega projects

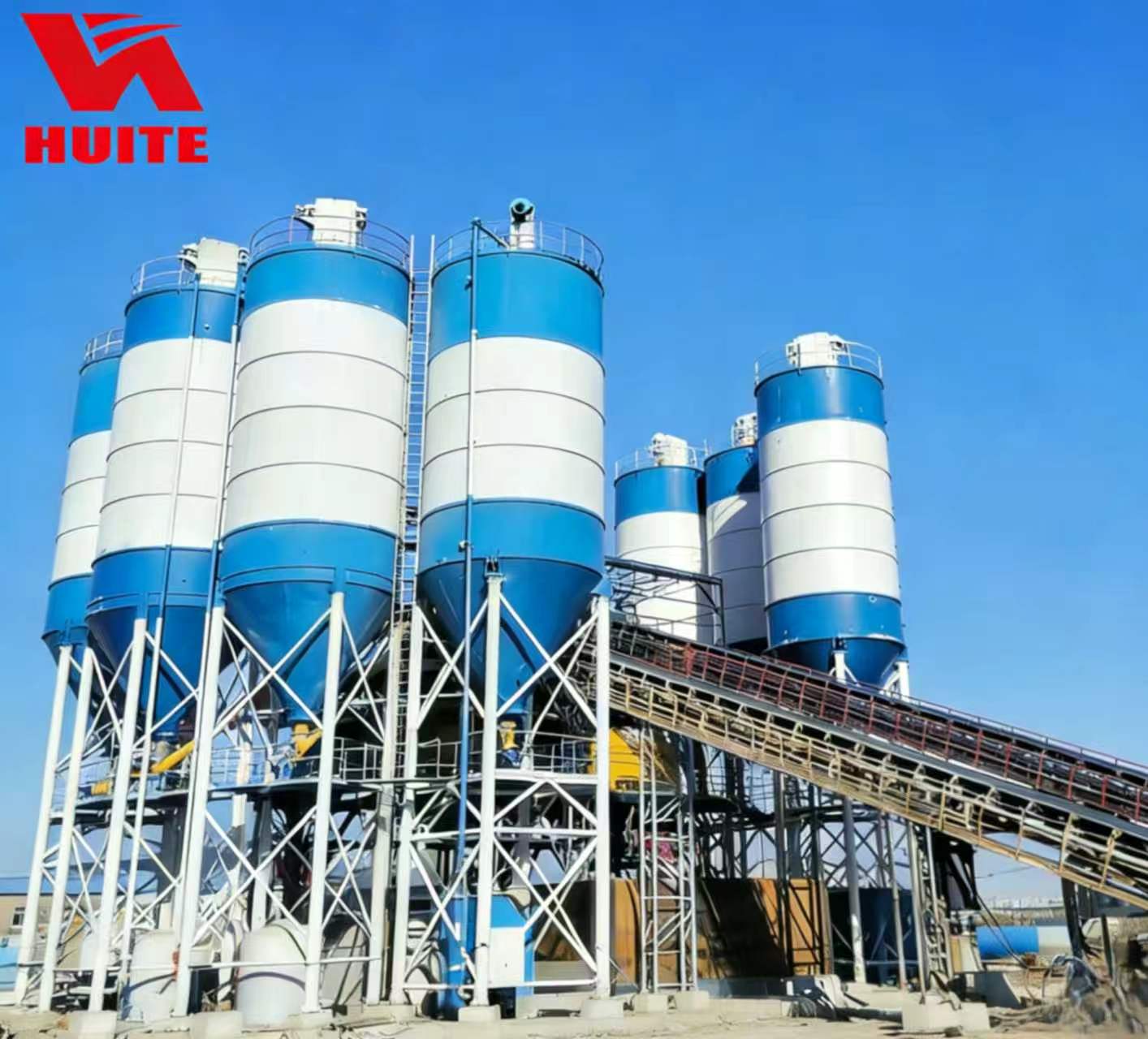

HUITE HZS210 Stationary Concrete Batching Plant in Malaysia

1. Customized Anti-Corrosion & High-Efficiency HZS210 Stationary Concrete Batching Plant for Tropical Coastal Mega Projects

2. This case presents our HZS210 heavy-duty stationary concrete batching plant deployed for a coastal mega-infrastructure project in Malaysia. We delivered a full-life customized solution to overcome extreme local challenges—high temperature up to 48℃, persistent high humidity, severe salt-spray corrosion, and long-hour heavy-load production. Equipped with a JS3500 twin-shaft forced mixer, eight 100-ton cement silos, and an intelligent closed production system, the plant has achieved stable, high-capacity output, supplying high-performance concrete for cross-sea bridges, port terminals, and coastal commercial complexes, and winning high recognition from the Malaysian main contractor.

3.

4.

5. Project Overview

6. • Project Location: Coastal area of Penang Island, Malaysia

7. • Client Demand: A heavy-duty, high-efficiency concrete batching plant for large-scale coastal infrastructure, requiring ≥10 years of reliable service, ultra-low failure rate under long-hour operation, strong resistance to salt corrosion and high-temperature fatigue, and compliance with local environmental standards.

8. • Equipment Configuration: HZS210 stationary concrete batching plant; JS3500 twin-shaft forced mixer; 8×100t cement silos with dehumidification & anti-corrosion; 4×20m³ aggregate batching hoppers; fully enclosed belt conveying; high-protection PLC intelligent control system; centralized dust removal & noise reduction system.

9. • Project Period: Delivered and commissioned in Q2 2024, officially operational in May 2024, running continuously with zero major failures to date.

10. • Project Achievement: Annual failure rate controlled below 0.8%; key components extended by over 35%; stable output of 210m³/h; effectively resisting salt-spray and high-temperature impacts, supporting uninterrupted construction for Malaysia’s key coastal projects.

11. Customized Solution for Malaysia’s Tropical Coastal Environment

12. Targeting high temperature, high humidity, salt corrosion, and heavy-load continuous production, we integrated structural upgrades, full-cycle maintenance, and localized support to maximize durability and productivity.

13. 1. Targeted Structure Upgrade (Base for Long Life)

14. • Anti-Corrosion Reinforcement: All steel structures (mixer body, silos, frames, conveyors) adopt hot‑dip galvanizing + salt‑spray resistant topcoat; corrosion resistance improved by 50% vs. standard versions. Mixing blades, liners, and screws use high‑chromium wear‑resistant alloy with anti‑corrosion coating, greatly reducing wear and pitting.

15. • High-Temperature & Moisture-Proof Optimization: JS3500 mixer equipped with high‑efficiency forced cooling system to avoid overheating under 48℃ ambient temperature. Main motors use Class H insulation; electric cabinets adopt fully sealed, moisture‑proof, anti‑condensation design.

16. • High-Efficiency: Centralized pulse dust collection; noise ≤70dB; dust emission meets Malaysia’s environmental requirements. Modular design shortens installation and commissioning period by 30%.

17. 2. Full-Cycle Customized Maintenance Plan (Core of Stable Performance)

18. A scientific schedule tailored for coastal heavy-load operation, distinct from standard plans:

19. • Monthly: Comprehensive anti‑corrosion inspection; clean dust collectors; check electrical tightness and sealing to prevent salt‑spray short circuits.

20. • Quarterly: Replace high‑temperature resistant lubricants; inspect blade/liner wear; calibrate load cells to maintain measuring accuracy.

21. • Semi‑annually: Overhaul silo dehumidification, motor cooling, and pneumatic systems; reapply anti‑corrosion on key joints.

22. • Annually: Full‑plant maintenance, corrosion protection, and foundation settlement inspection; proactively replace wearing parts to eliminate sudden breakdowns.

23. • Rapid After-Sales Support: 24/7 remote monitoring & technical guidance; local spare parts warehouse ensuring 48‑hour delivery for core parts (blades, belts, sensors, bearings), minimizing downtime.

24. • On-Site Training: Professional training for operation and maintenance teams, covering daily inspection, anti‑corrosion management, fault troubleshooting, and production optimization, enabling independent daily management.

25. 3. Operation Effect & Client Value

26. • Stable High Output: Steady 210m³/h capacity, satisfying large‑scale, continuous concrete demand for cross‑sea bridges and port projects.

27. • Ultra-Low Failure Rate: Annual failure rate <0.8%, far better than the industry average of 3–5%.

28. • Longer Service Life: Key components life extended by >35%, reducing spare parts and labor costs.

29. • Independent Operation: Client team manages daily maintenance, lowering external support dependency and total cost of ownership.

30.

31. Equipment Technical Parameters

32. Item	Specification
    Model	HZS210 Stationary Concrete Batching Plant
    Theoretical Productivity	210 m³/h
    Mixing Host	JS3500 Twin‑shaft Forced Mixer (Anti‑corrosion & High‑temp)
    Nominal Capacity	3500 L
    Cement Silo	8×100 t, double anti‑corrosion, dehumidification
    Aggregate Hopper	4×20 m³, anti‑corrosion & waterproof
    Conveying System	Fully enclosed belt, anti‑corrosion & high‑temp resistant
    Max Aggregate Size	≤80 mm
    Discharging Height	4.0 m (customizable)
    Total Installed Power	Approx. 270 kW
    Measuring Accuracy	Aggregate ±2%; Cement/Water/Admixture ±1%
    Control System	Intelligent PLC (English + Malay), moisture‑proof, remote monitoring

33.  Client Feedback & Our Commitment

34. Client Feedback:
    “The HUITE HZS210 concrete batching plant and its customized anti‑corrosion, high‑temperature maintenance solution perfectly solve our coastal operation pain points. It runs stably under heavy load with extremely low failure and maintenance cost. The remote support and local spare parts service eliminate our worries. We highly recommend your reliable equipment and professional one‑stop service.”
    —— Project Manager, Malaysian Coastal Infrastructure Contractor

35. We have extensive experience in customized concrete batching plant solutions for tropical, coastal, and high‑temperature harsh environments. For the Malaysian market, we deeply understand local climate, regulations, and construction demands, and are committed to providing integrated services including equipment customization, rapid installation, maintenance training, and long‑term after‑sales support, securing stable and efficient performance for your large projects.

36. Need a tailored high‑efficiency, anti‑corrosion concrete batching plant? Contact HUITE now for a customized solution and official quotation!
