HUITE 2HZS180 stationary concrete batching plant with 360m³/h output, dual mixer, PLC control, high precision weighing. CE, ISO certified, factory direct supply.

Structural Composition

2HZS180 Stationary Concrete Batching Plant is composed of six core systems and supporting auxiliary devices, forming a fully automatic concrete production line.

Mixing System Equipped with two sets of JS4500/3000 twin‑shaft concrete mixers, it mixes materials quickly and evenly. The wear‑resistant alloy mixing arms and reliable sealing structure ensure no slurry leakage and long service life, suitable for various concrete types.

Batching System Configured with two sets of PLD4800 high‑precision batchers with 3–4 bins(Customization is available upon request.), it accurately stores and proportions sand and stone. It supports multiple weighing modes to guarantee stable aggregate ratio.

Conveying System Includes high‑capacity belt conveyors for aggregates, fully enclosed screw conveyors for cement and fly ash, and dedicated delivery pumps for water and additives, ensuring efficient and pollution‑free transmission.

Weighing System Adopts high‑precision sensors for aggregates, cement, water and additives, with automatic compensation function to ensure accurate weighing and stable concrete quality.

Storage System Consists of enclosed aggregate bins, dust‑proof cement silos with arch breakers, and corrosion‑resistant additive tanks, providing safe and stable storage for all raw materials.

Core Advantages

High Efficiency & Large Output
Dual‑line independent design enables a rated productivity of 360m³/h, with each line running separately or synchronously.

Stable & Reliable Mixing Performance
Dual high‑performance twin‑shaft mixers ensure even mixing within 60 seconds.

High‑Precision Weighing & Stable Proportioning
Weighing accuracy reaches ±2% for aggregates and ±1% for cement, water and additives.

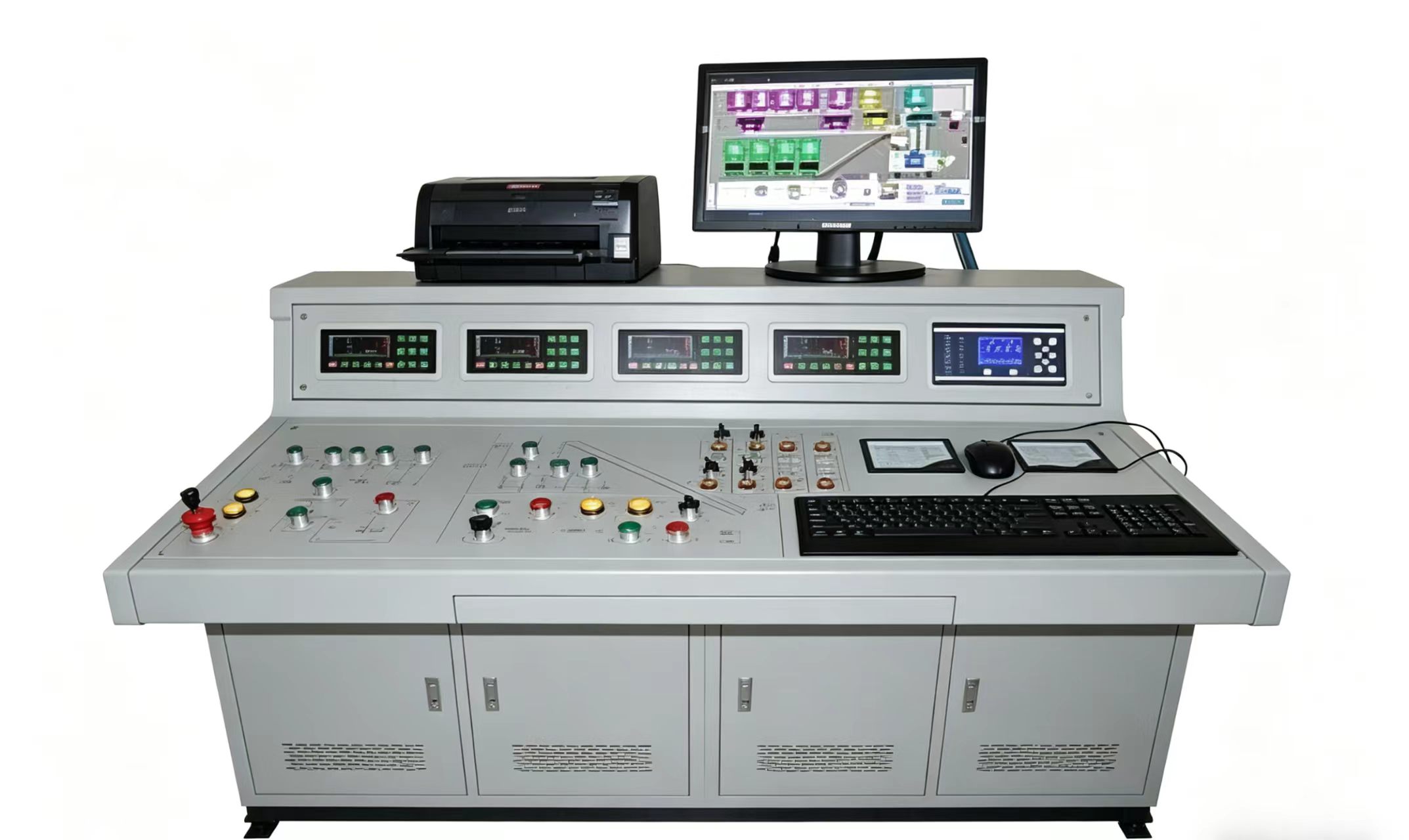

Intelligent Control & Easy Operation
Powered by a central PLC system, supports automatic production and real‑time monitoring.

Strong Conveying & Durable Structure
700t/h aggregate conveying capacity and heavy‑duty steel structure.

Compact Layout & Easy Maintenance
4.3m discharge height compatible with most mixer trucks.

FAQs

Common FAQs about the 2HZS180 Stationary Concrete Batching Plant, with professional answers for your reference.

Q1: Can it reach the rated 360 m³/h (dual-line) output?

A: Rated 180 m³/h (single line) and 360 m³/h (dual line) under standard conditions. Actual output of the 2HZS180 Stationary Concrete Batching Plant is 85%–95% of the rated value; we provide on-site guidance to maximize efficiency.

Q2: What is the installation cycle?

A: Installation cycle is 15–20 working days (excluding foundation). As a modular stationary concrete batching plant, we provide professional installation, commissioning and technical guidance.

Q3: What is the service life and daily maintenance?

A: Service life is 10–20 years under normal use. Core components are high-quality; daily maintenance includes cleaning, weighing check, lubrication and electrical inspection, supported by our maintenance manual and after-sales service.

Q4: Can it produce different concrete types and switch formulas easily?

A: Yes. The 2HZS180 Stationary Concrete Batching Plant is equipped with an intelligent PLC system, which can store multiple formulas (C15–C60, road, precast) and support one-click switching.

Q5: What after-sales services are provided?

A: 1-year free warranty (excluding wearing parts), 24-hour hotline, on-site fault handling, regular return visits and original spare parts supply.

Q6: Can the equipment be customized?

A: Yes. We provide customization services including discharge height, aggregate batcher, dust removal system and control functions to meet your project requirements.

Why Choose Our 2HZS180 Stationary Concrete Batching Plant?

As a professional manufacturer with over 20 years of R&D and production experience, we have passed ISO certification and provide high-quality products and comprehensive services for global customers.

High-Quality Equipment

Key components are selected from well-known brands with strict quality control, ensuring long service life and stable performance.

Customized Solutions

We provide personalized configuration and design according to your project needs, adapting to various working conditions.

Professional After-Sales Service

On-site installation, commissioning and maintenance training are available, supported by 24-hour online technical support.

Cost Advantage

Energy-saving design, low maintenance cost and high production efficiency help reduce your overall operating costs.

Global Certification

The 2HZS180 Stationary Concrete Batching Plant complies with international standards with CE, ISO certifications, ensuring smooth customs clearance and safe use.
