HUITE HZS210 concrete batching plant, 210m³/h stationary concrete mixing plant, JS3500 twin-shaft concrete mixer plant, eco-friendly concrete batching plant, high precision concrete batching plant for mega projects

1. Key Advantages

2. 1. Ultra-High Efficiency Production: Mass Output for Large-Scale Construction

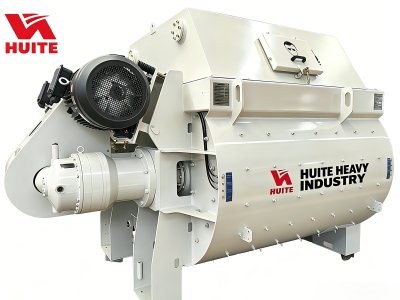

3. The HZS210 stationary concrete batching plant takes JS3500 twin-shaft concrete mixer as the core, with optimized spiral stirring blade structure and double-power drive to realize high-speed and uniform mixing. Its core production data is as follows:

4. Core Index	Specific Data
   Mixer Discharge Capacity	3500L
   Theoretical Productivity	210m³/h
   Mixing Cycle	60s
   Material Conveying Efficiency	≥80t/h (powder)

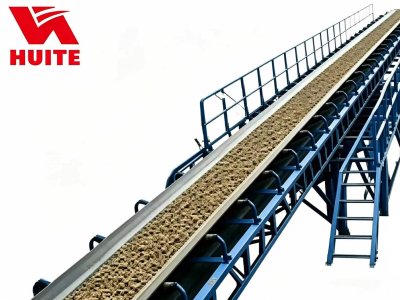

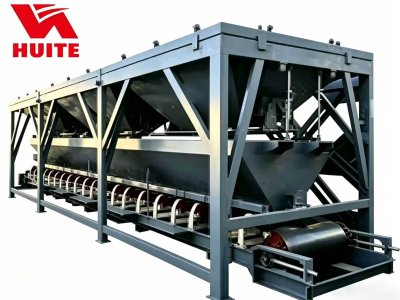

5. Equipped with large-width electric drum belt conveyor and high-frequency vibrators for aggregate hopper/scale, it ensures continuous, dust-free and high-efficiency material conveying, completely meeting the uninterrupted production demand of large-scale engineering projects and avoiding any production interruption caused by material supply.

6. 2. High-Precision Measurement System: Uncompromising Concrete Quality

7. The HZS210 stationary concrete batching plant adopts an upgraded high-precision digital measurement system with real-time automatic compensation and anti-bias load functions, ensuring consistent and stable batch quality of mass concrete production.

8. Key measurement data:

9. Measured Material	Measurement Accuracy
   Cement, Fly Ash, Water, Admixtures	±1%
   Aggregate	±2%

10. It supports precise proportioning of various high-performance concrete types such as high-strength concrete and self-compacting concrete, effectively avoiding quality defects and massive material waste caused by inaccurate measurement, and fully meeting the high-standard quality requirements of key projects.

11. 3. Intelligent Redundant Control: Simple, Safe and Ultra-Reliable

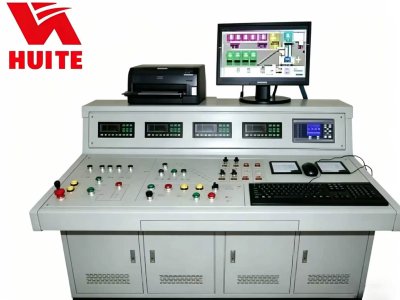

12. The HZS210 stationary concrete batching plant is equipped with an advanced intelligent PLC dual-machine redundant control system with international renowned brand components, supporting automatic/semi-automatic/manual three operation modes. It features multi-language human-computer interaction interface, real-time fault diagnosis, remote monitoring and multi-level emergency protection functions, realizing unmanned operation of the whole production process and ensuring safe, efficient and intelligent production management even in long-term continuous production.

13. 4. Advanced Eco-Friendly & Energy-Saving Design: Green Production Upgraded

14. Fully upgraded for environmental protection and energy saving, the HZS210 stationary concrete batching plant is equipped with high-efficiency pulse dust collectors, closed full-process conveying design and waste heat & dust recovery system.

15. Core energy-saving and environmental protection data:

16. Core Index	Specific Data
    Total Power	About 240kw
    Energy Saving Rate vs Traditional Equipment	20-25%
    Dust Removal Efficiency	≥95%
    Noise Level	≤75dB (A-weighted)

17. Low-noise operation, high-efficiency energy-saving motor and energy recovery system greatly reduce the operation cost and environmental impact, fully complying with the strictest green production standards of various countries and achieving eco-friendly production with zero dust emission and low energy consumption.

18. 5. Heavy-Duty Structure & Convenient Maintenance: Minimize Operation Cost

19. The HZS210 stationary concrete batching plant adopts heavy-duty high-strength steel structure and optimized modular design, with reasonable layout and strong site adaptability, realizing quick installation and disassembly. It is equipped with quick-access maintenance parts, wear-resistant alloy components and high-pressure automatic cleaning system, with 1-year overall warranty and lifelong maintenance service. The key components have a long service life, greatly reducing the maintenance difficulty and long-term operation cost of the equipment.

20. 6. Super Strong Adaptability: Customized for Mega-Scale Scenarios

21. The HZS210 stationary concrete batching plant is specially designed for large-scale concrete production scenarios, widely used in large commercial concrete production bases, national key road and bridge engineering, hydraulic engineering, high-speed rail and airport construction, large prefabricated building production and other mega projects with daily concrete demand of 1500-3000m³. It supports full-process customized design from equipment layout to production configuration to meet the personalized production needs of global customers for different types of concrete and different construction scenarios.

22. With ultra-high cost performance, stable long-term operation and low comprehensive maintenance cost, the HZS210 stationary concrete batching plant is the first choice for large and medium-sized construction enterprises to undertake key mega projects and enhance core market competitiveness.

23. Overall Effect Display

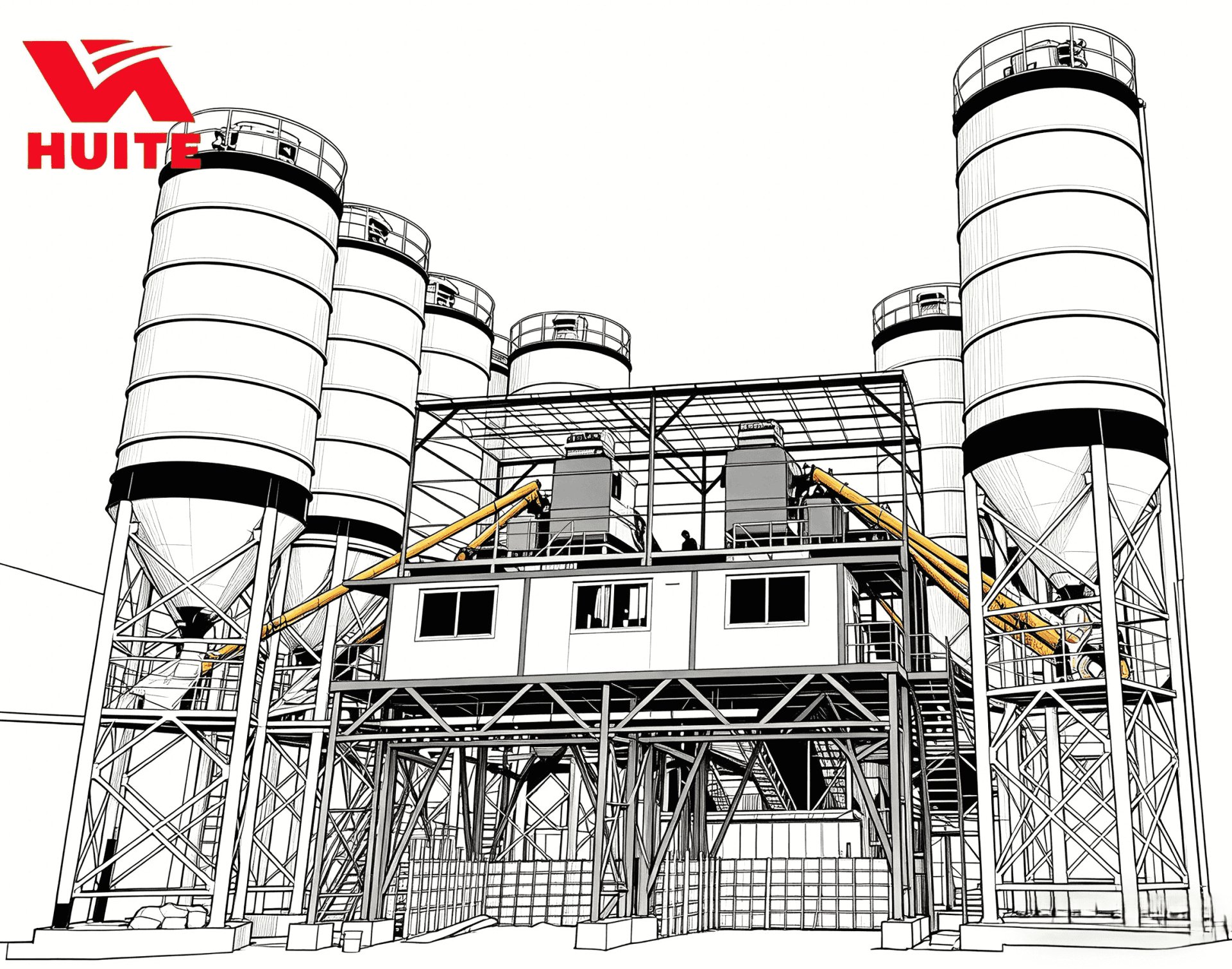

24. (Real shot pictures/3D renderings of the whole machine, main working parts and control room)

25. Application Scenarios

26. The HUITE HZS210 Stationary Concrete Batching Plant is a professional large-scale concrete mixing equipment with super strong adaptability, mainly applied in:

27. • Large-scale commercial ready-mix concrete batching plants

28. • National key road, bridge, tunnel, viaduct and intercity rail construction projects

29. • Large hydraulic engineering, dam and water conservancy facility construction

30. • Large precast concrete component factories and prefabricated building industrial bases

31. • Super high-rise building, large commercial complex and residential community cluster construction

32. • Airport, port, high-speed rail station and other large transportation hub construction

33. • All large-scale and mega construction projects with daily concrete demand of 1500-3000m³

34. We provide one-stop customized solutions including equipment design, installation, commissioning and after-sales service to fully meet the personalized production and construction needs of global customers for large-scale concrete production.

1. Technical Parameters

2. Item	Detailed Data
   Model	HZS210
   Theoretical Productivity	210 m³/h
   Core Mixer Model	JS3500 Twin-Shaft Concrete Mixer
   Total Power	about  240kW
   Aggregate Bins	4×30m³
   Weighing Accuracy	Aggregate ±2%; Cement/Fly Ash/Water/Admixtures ±1%
   Material Feeding Type	Belt conveyor
   Discharge Height	4.1 m (customizable)
   Control System	Intelligent PLC dual-machine redundant control
   Mixing Cycle	60s
   Aggregate Particle Size	≤80mm

3. Frequently Asked Questions (FAQs)

4. 1. What is the maximum aggregate particle size the HZS210 can handle?

5. The plant is designed for aggregate particle size ≤80mm, ensuring stable mixing for various construction-grade aggregates.

6. 2. Does the HZS210 support customized design for different project scenarios?

7. Yes, we offer full-process customization from equipment layout to production configuration to match personalized concrete production and construction demands worldwide.

8. 3. What after-sales services are provided for the HZS210?

9. It comes with a 1-year overall warranty and lifelong maintenance service, including on-site commissioning, spare parts supply and technical support.

10. 4. How is the environmental performance of the HZS210 guaranteed?

11. Equipped with high-efficiency pulse dust collectors, closed conveying system and waste heat recovery, it achieves dust removal efficiency ≥95% and noise level ≤75dB(A), complying with global green production standards.

12. 5. What operation modes does the HZS210’s control system support?

13. The intelligent PLC dual-machine redundant control system supports automatic, semi-automatic and manual three operation modes, with real-time fault diagnosis and remote monitoring functions.
