Structural Composition

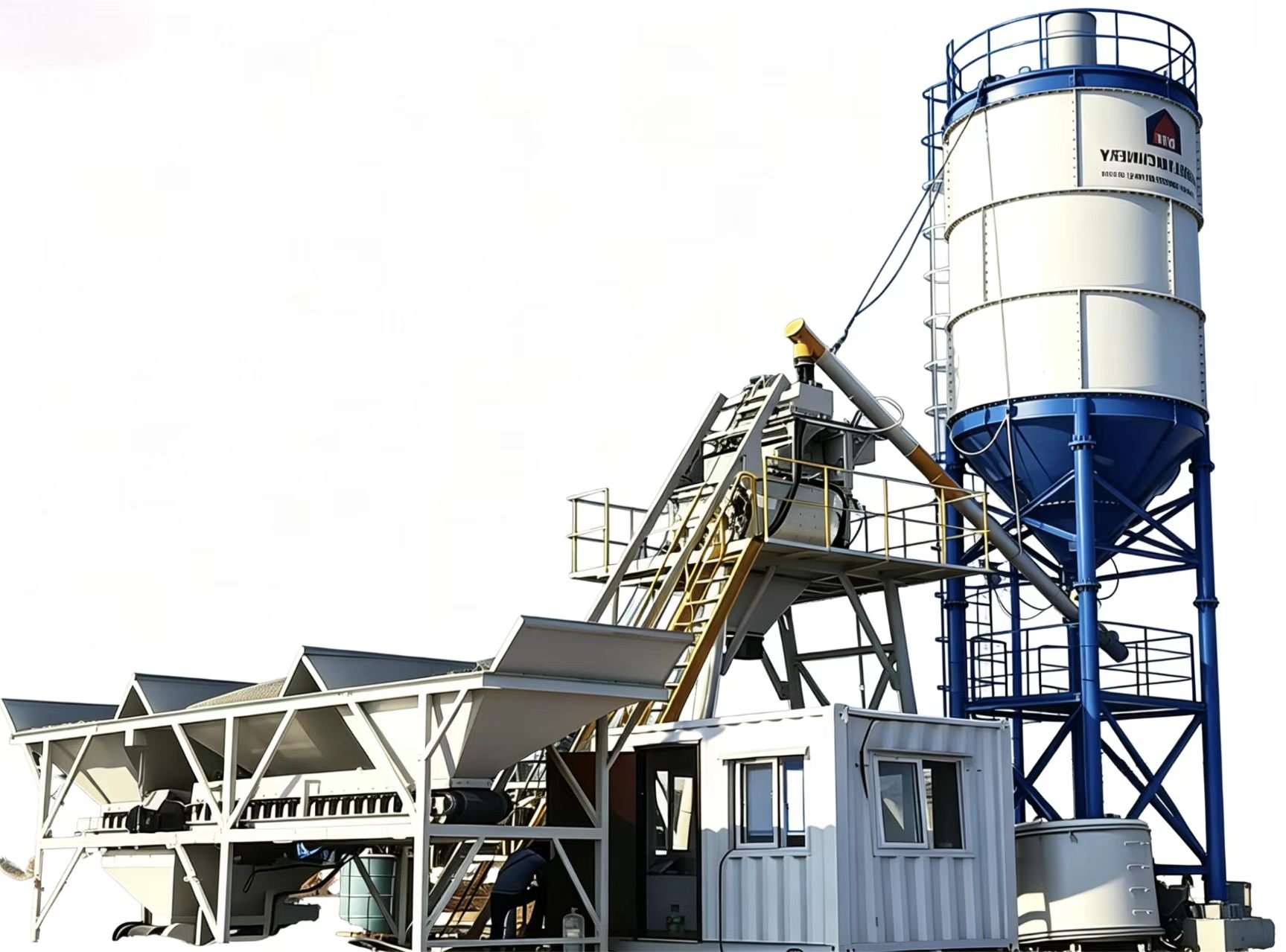

HZS25 Stationary Concrete Batching Plant is composed of six core systems and supporting auxiliary devices, forming a compact and efficient automatic concrete production line.

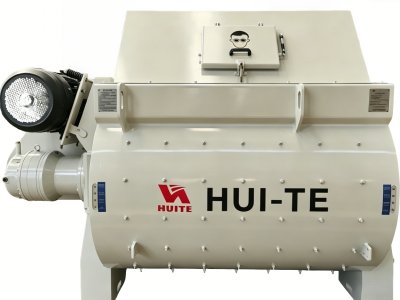

Mixing System
Equipped with one set of JS500 twin‑shaft concrete mixer, it features strong mixing force and uniform mixing quality. The specially designed mixing blades, durable lining plates and reliable shaft-end sealing structure ensure no slurry leakage and long service life, suitable for small‑batch production of various concrete types.

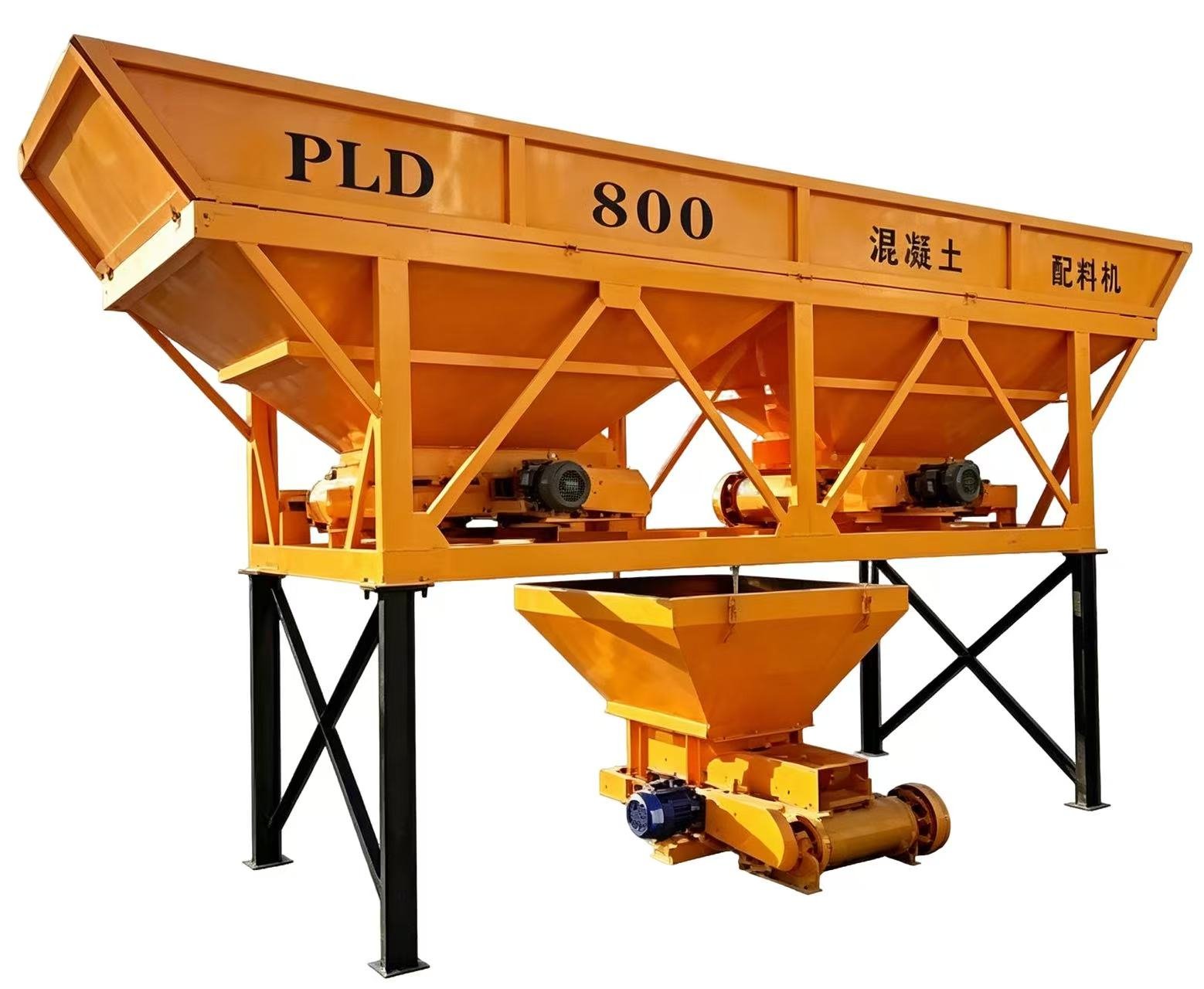

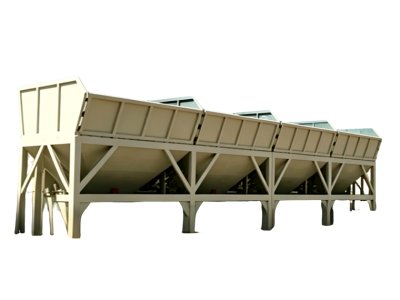

Batching System
Configured with one set of PLD800 high‑precision aggregate batcher with 2–4 bins (customization available upon request), it realizes orderly storage and precise proportioning of sand and gravel. Stable weighing and feeding ensure accurate aggregate ratio for small engineering applications.

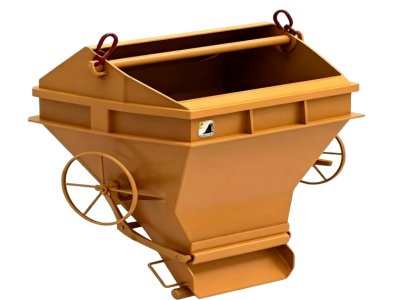

Conveying System

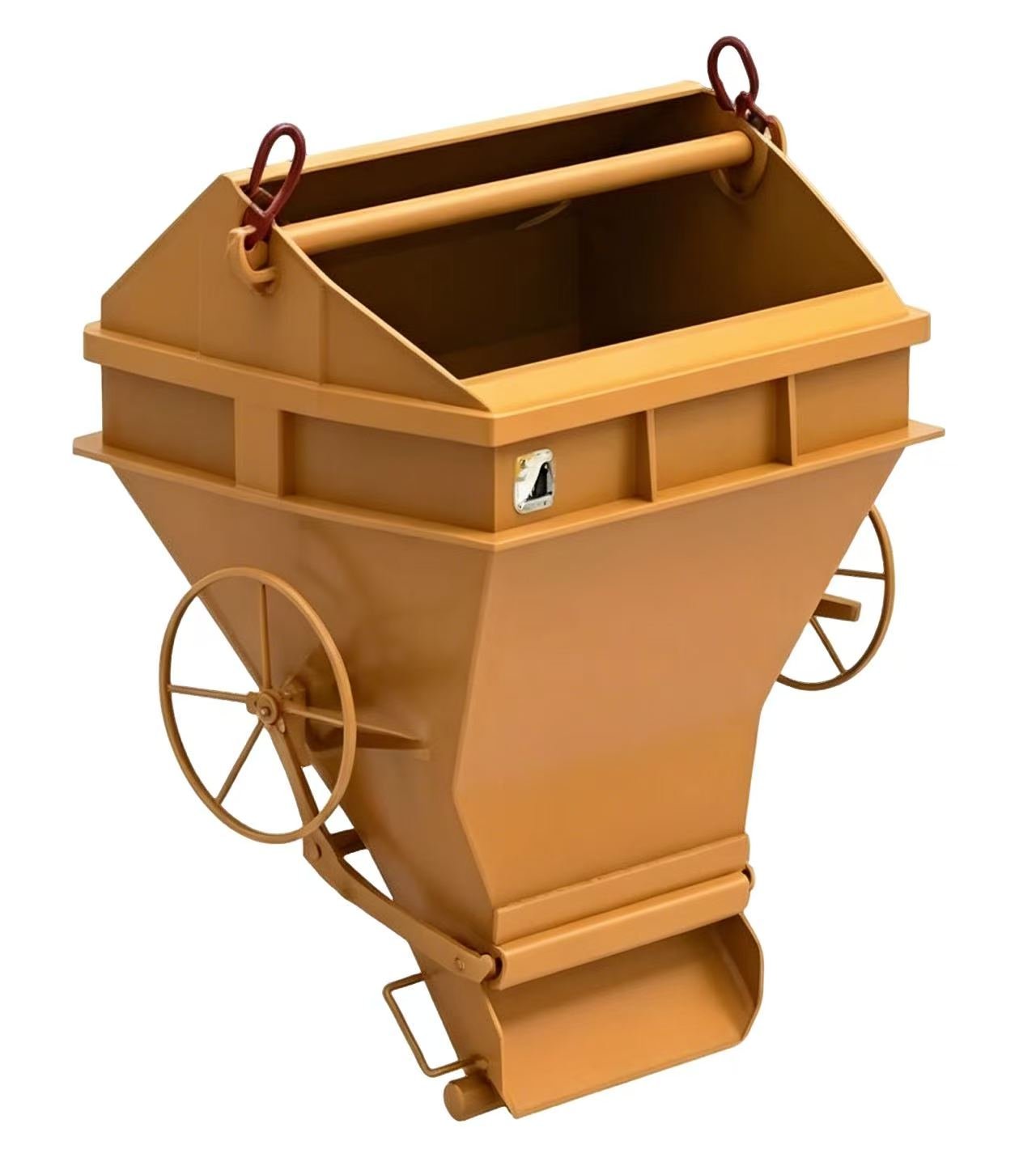

Adopts skip bucket for aggregate delivery and enclosed screw conveyor for cement, fly ash and other powder materials. Water and additives are transported by special measuring pumps, forming a clean, efficient and pollution‑free material conveying process.

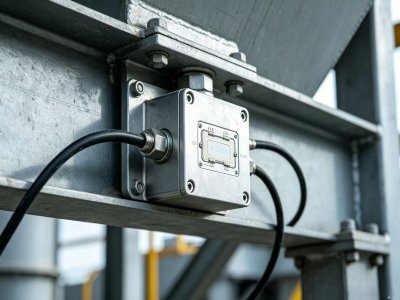

Weighing System
Equipped with high‑precision weighing sensors for aggregate, cement, water and additive respectively. With automatic drop compensation function, it ensures accurate weighing data and stable concrete mix proportion throughout production.

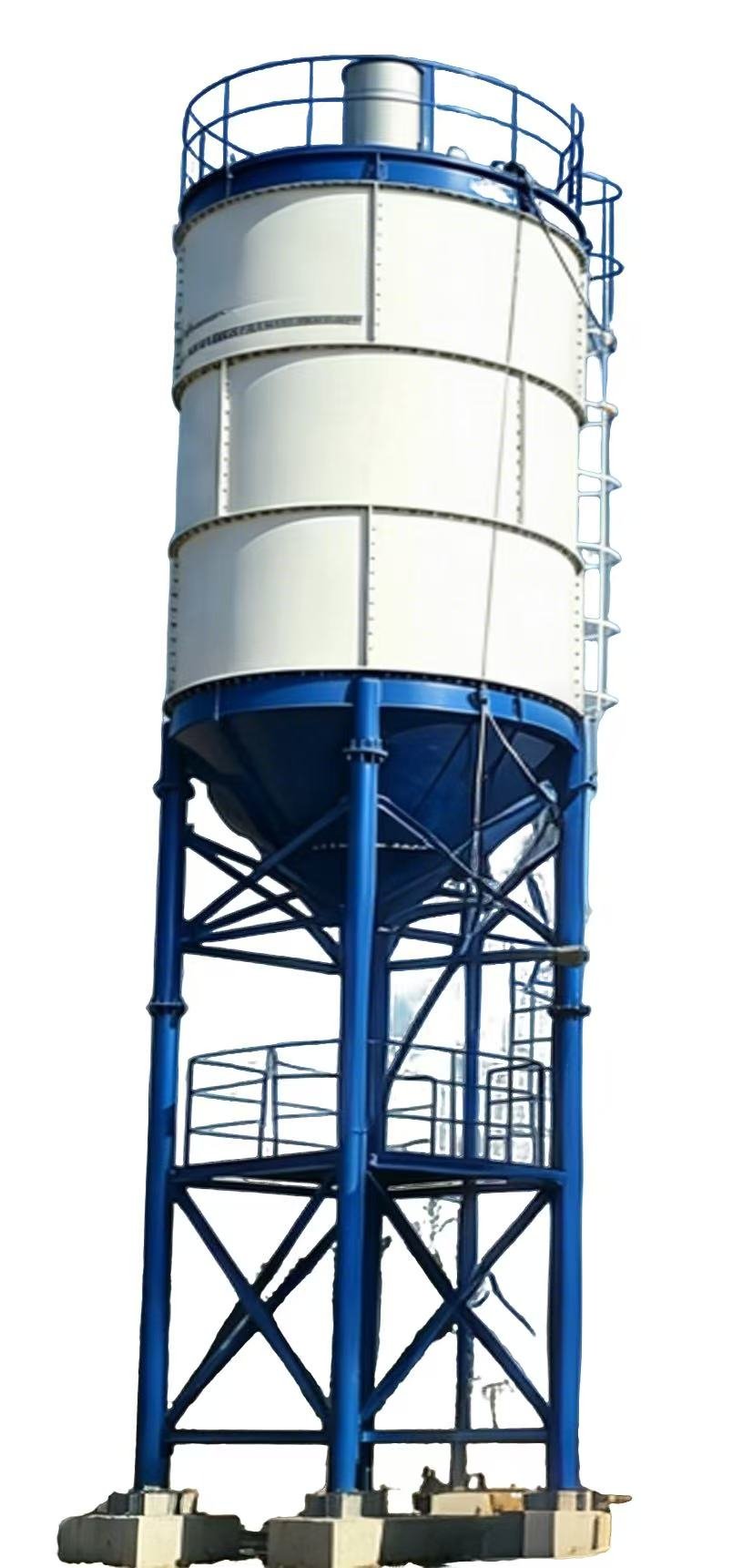

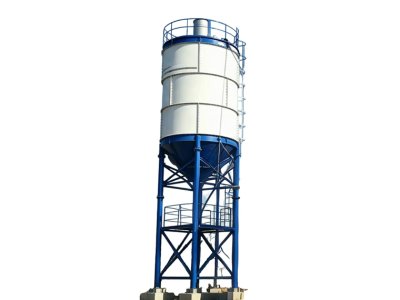

Storage System
Includes integrated aggregate storage bins, sealed cement silos with dust removal device, and anti‑corrosion water and additive storage tanks. The closed structure effectively prevents dust pollution and ensures safe and stable storage of raw materials.

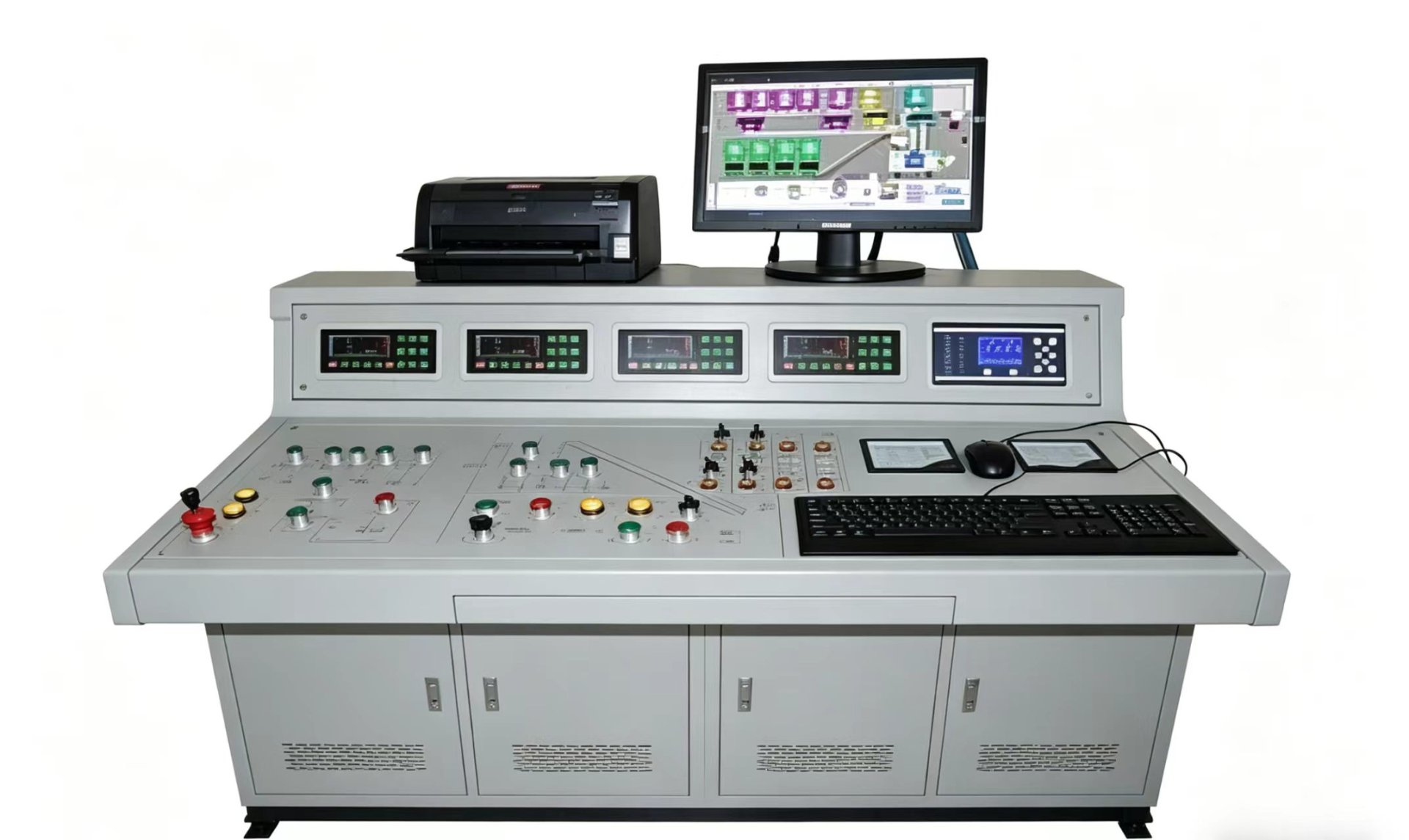

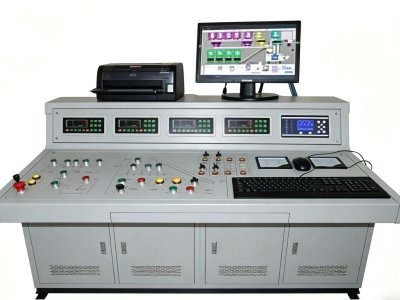

Control System
Adopts intelligent PLC automatic control system with friendly man-machine interface, supporting automatic, semi-automatic and manual operation modes. It realizes formula storage, real-time monitoring, data statistics and fault alarm, making operation simple and stable.
Core Advantages
Compact Structure & High Cost Performance
With small footprint, reasonable layout and low investment cost, HZS25 is specially designed for small and medium‑sized projects. It achieves reliable performance with low operating and maintenance expenses.
Stable Mixing & Reliable Quality
The compulsory twin-shaft mixer ensures even and sufficient mixing in each cycle, producing homogeneous concrete steadily. It is widely applicable to small construction sites, precast components and rural engineering projects.
High‑Precision Weighing & Consistent Proportioning
Weighing accuracy reaches ±2% for aggregates and ±1% for cement, water and additives. Precise batching guarantees stable concrete performance, meeting the quality requirements of small‑scale commercial and engineering concrete.
Intelligent Control & Simple Operation
Fully automatic control system realizes one‑key production, formula storage and automatic operation. The interface is intuitive and easy to learn, reducing labor intensity and improving construction efficiency.
Stable Conveying & Durable Structure
Reasonable conveying design ensures smooth and continuous feeding. The overall steel structure is firm and stable with strong anti‑vibration performance, adapting to various construction site environments with low failure rate.
Flexible Application & Easy Maintenance
With moderate discharge height matching general mixer trucks, the compact structure allows convenient inspection and maintenance of key parts. Short installation period and flexible movement make it ideal for temporary and small construction demands.
