Structural Composition

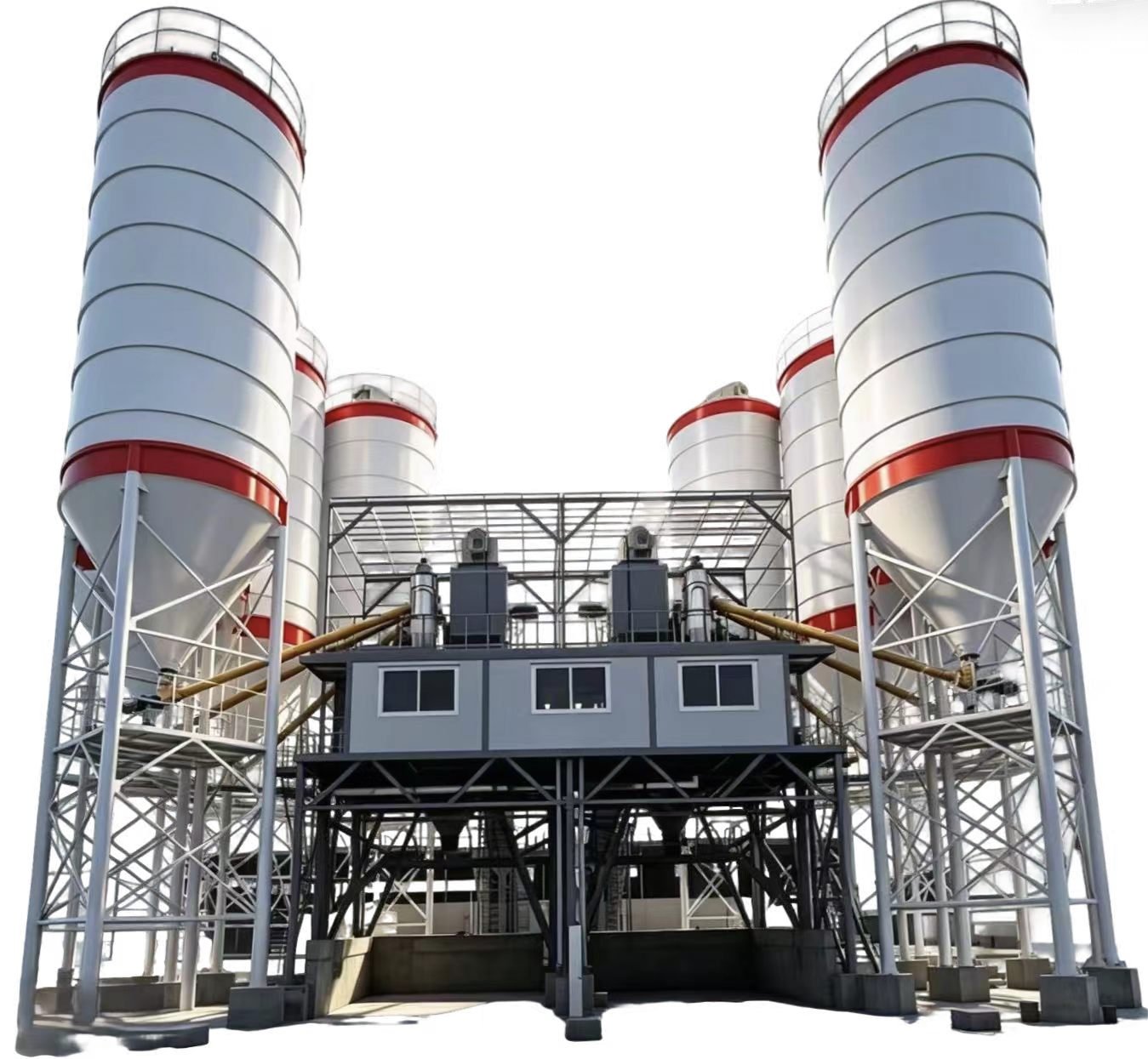

2HZS180 Stationary Concrete Batching Plant is composed of six core systems and supporting auxiliary devices, forming a fully automatic concrete production line.
Mixing System

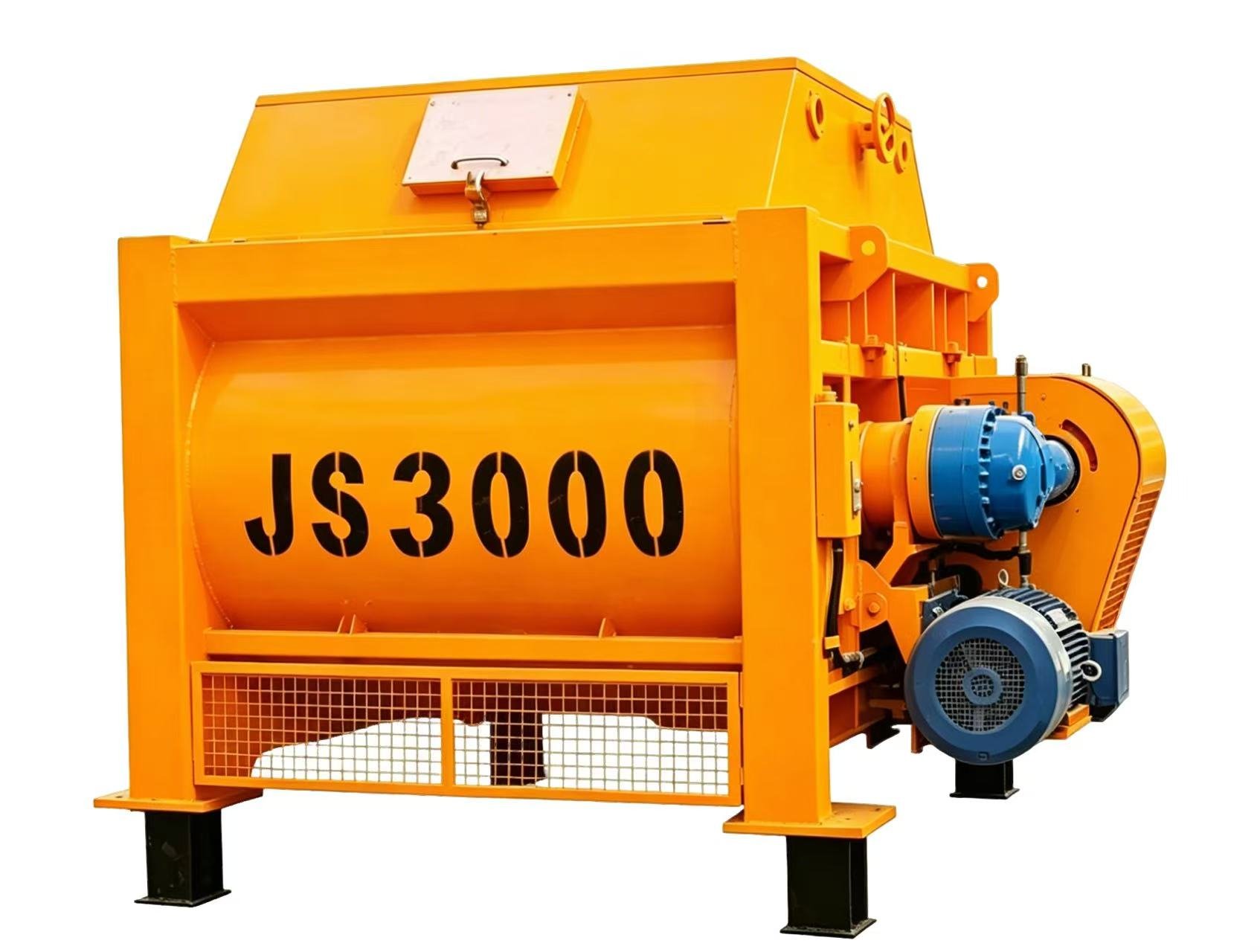

Equipped with two sets of JS4500/3000 twin‑shaft concrete mixers, it mixes materials quickly and evenly. The wear‑resistant alloy mixing arms and reliable sealing structure ensure no slurry leakage and long service life, suitable for various concrete types.
Batching System

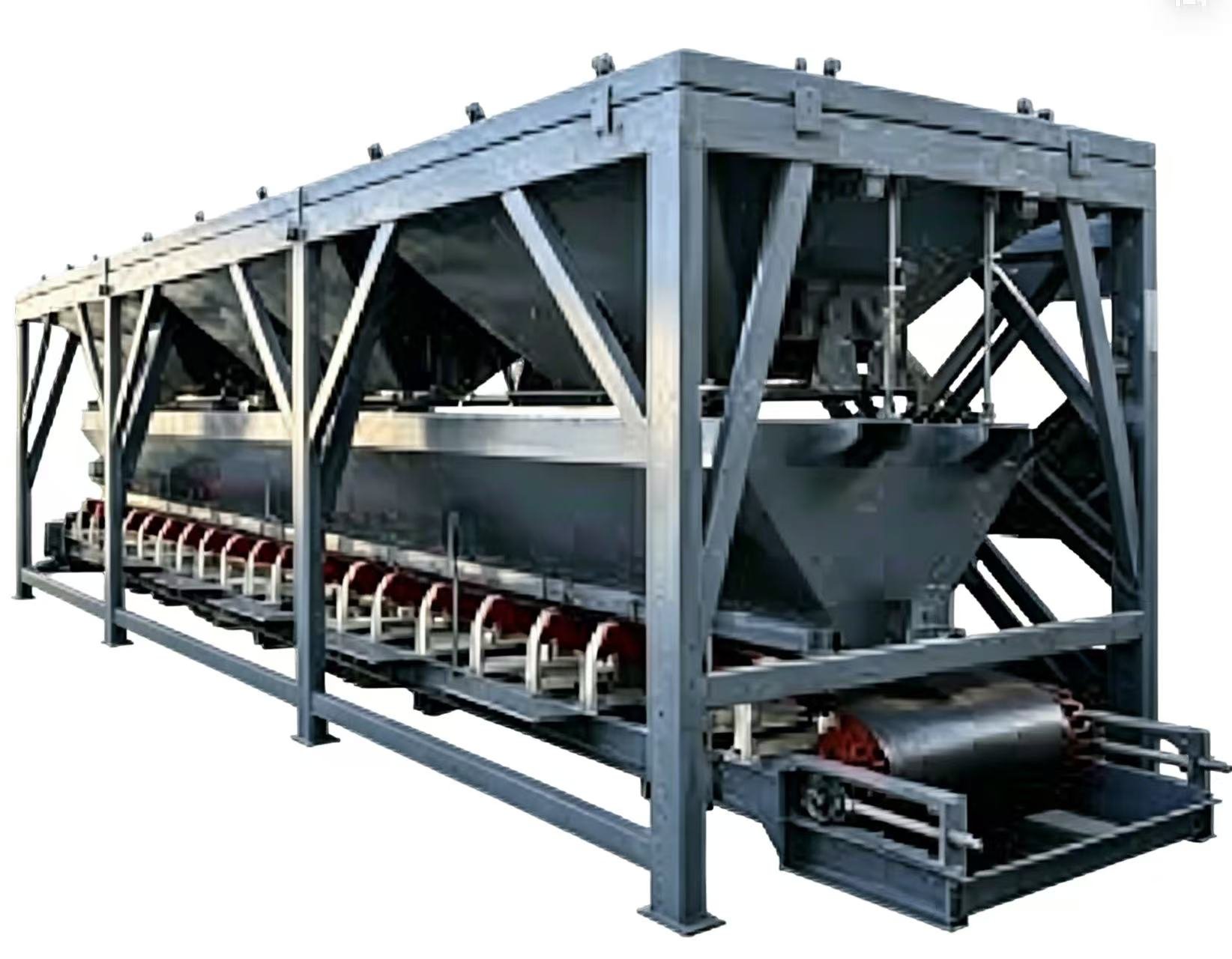

Configured with two sets of PLD4800 high‑precision batchers with 3–4 bins(Customization is available upon request.), it accurately stores and proportions sand and stone. It supports multiple weighing modes to guarantee stable aggregate ratio.
Conveying System

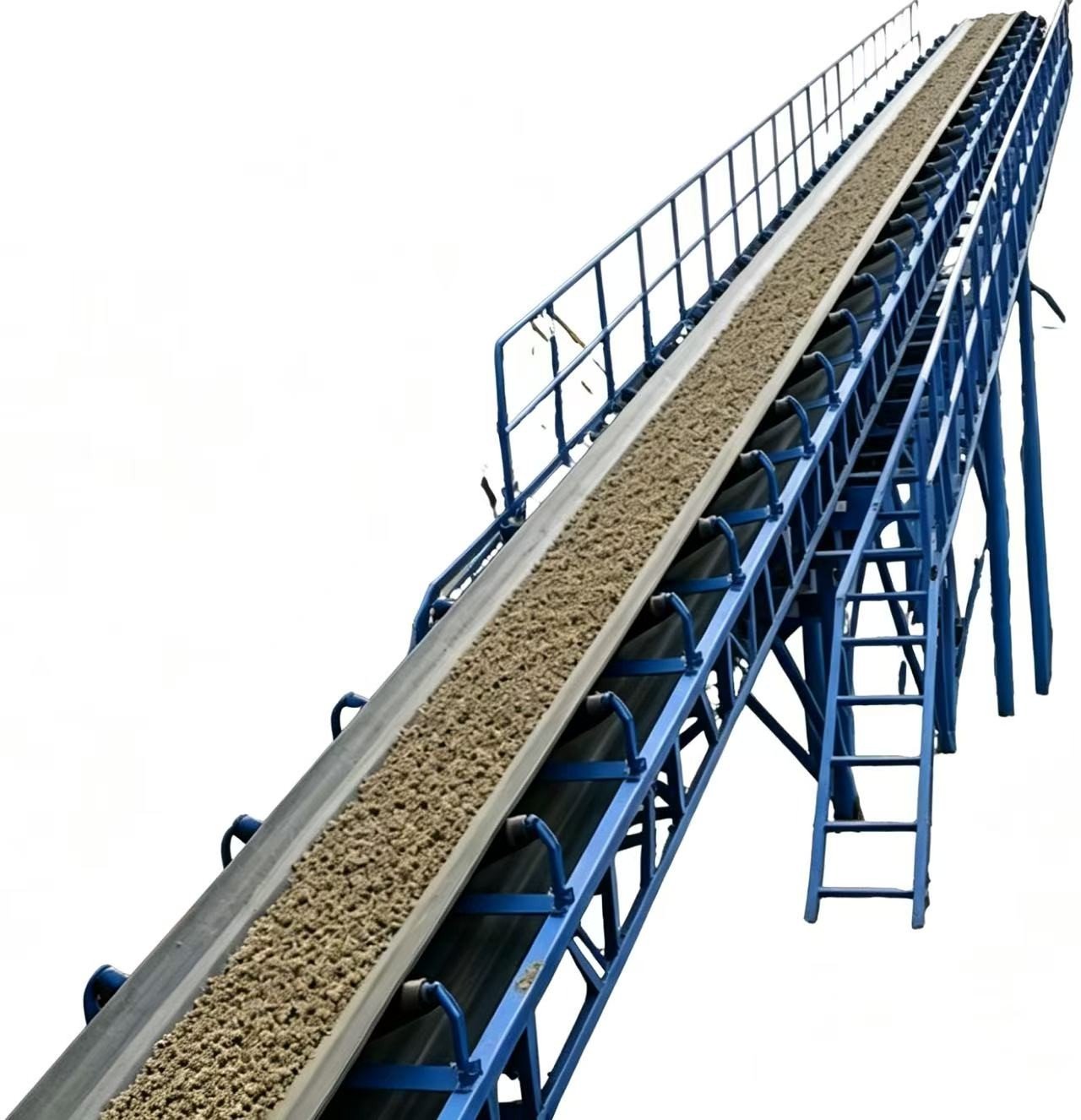

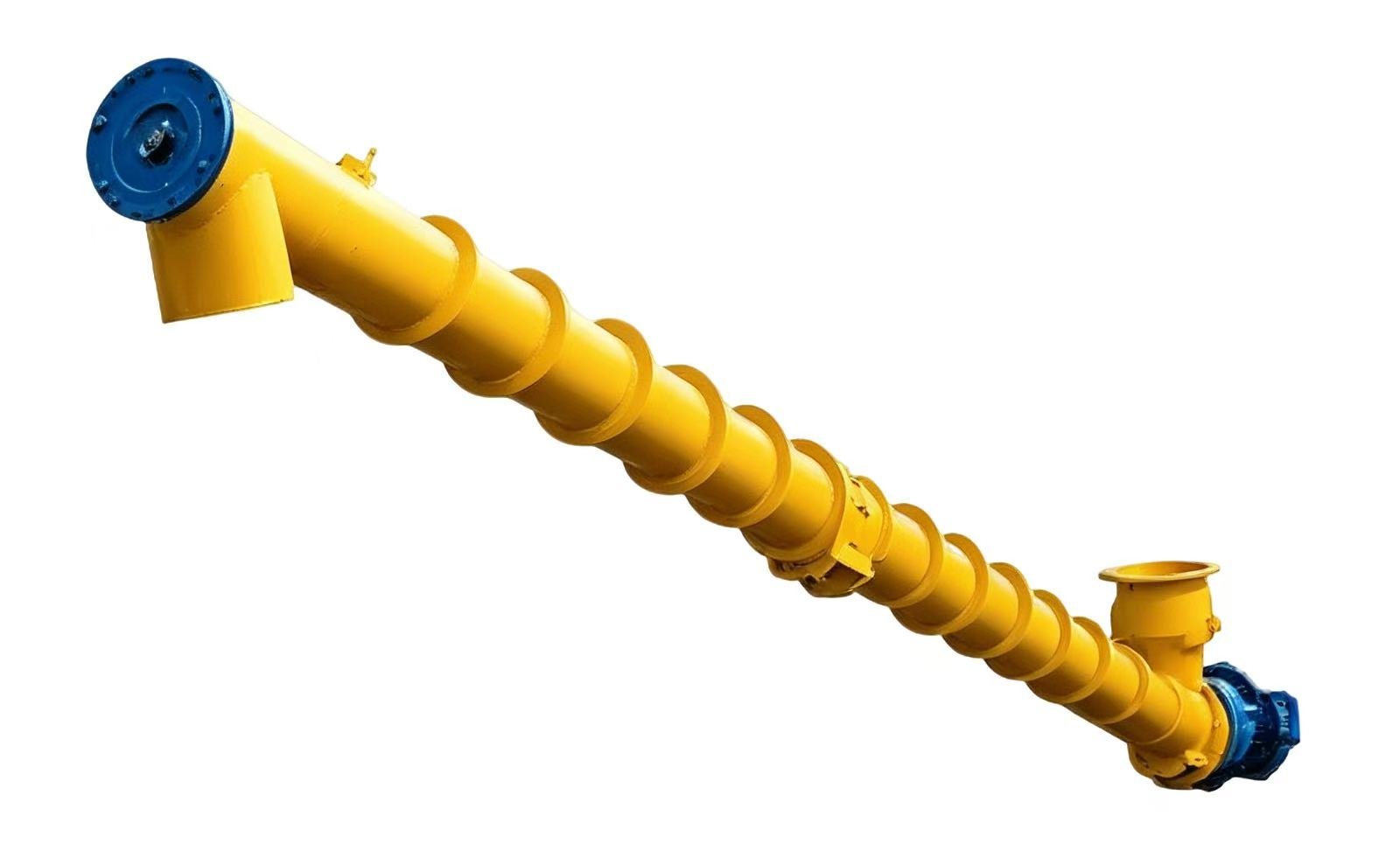

Includes high‑capacity belt conveyors for aggregates, fully enclosed screw conveyors for cement and fly ash, and dedicated delivery pumps for water and additives, ensuring efficient and pollution‑free transmission.
Weighing System
Adopts high‑precision sensors for aggregates, cement, water and additives, with automatic compensation function to ensure accurate weighing and stable concrete quality.
Storage System

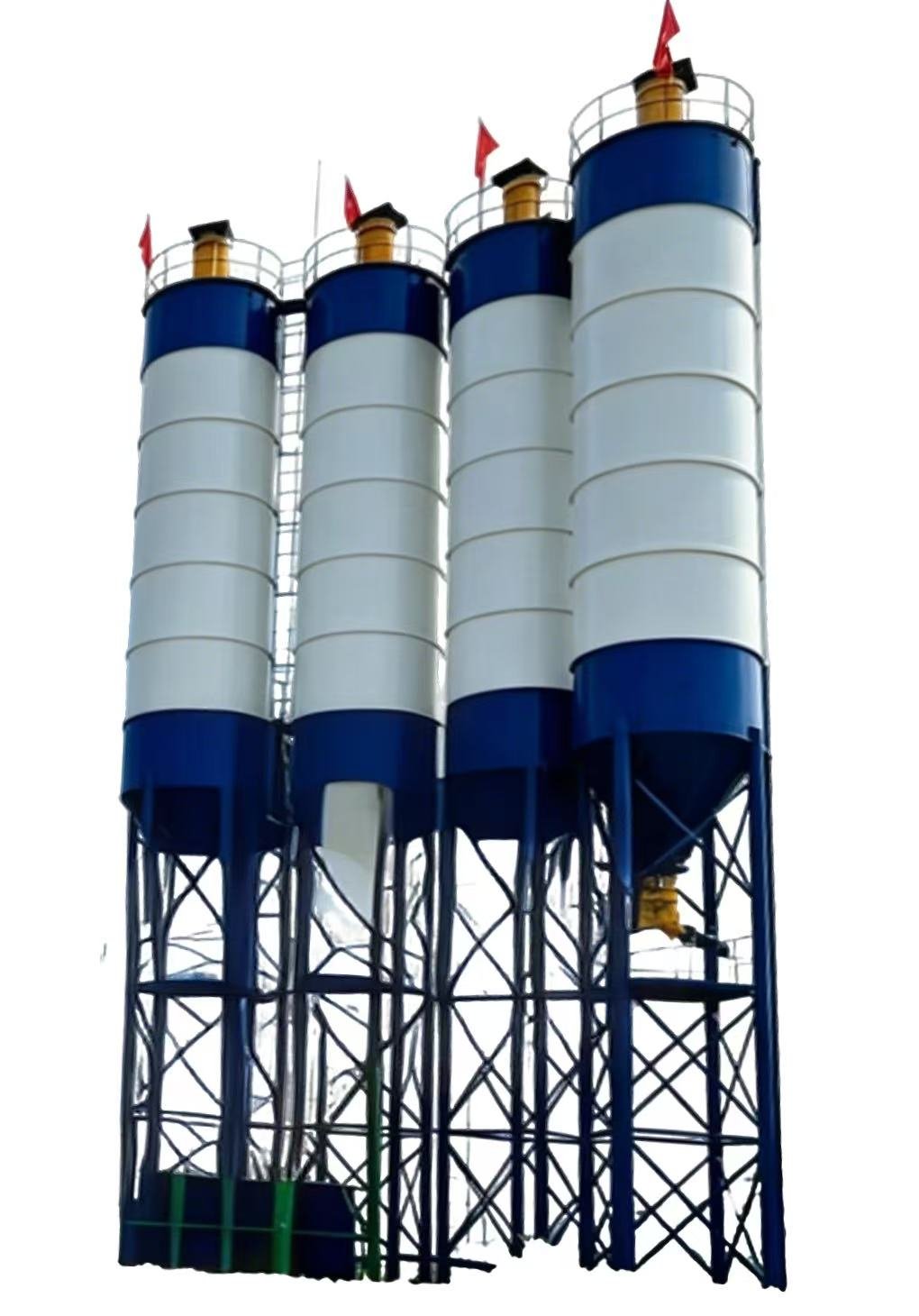

Consists of enclosed aggregate bins, dust‑proof cement silos with arch breakers, and corrosion‑resistant additive tanks, providing safe and stable storage for all raw materials.
Control System

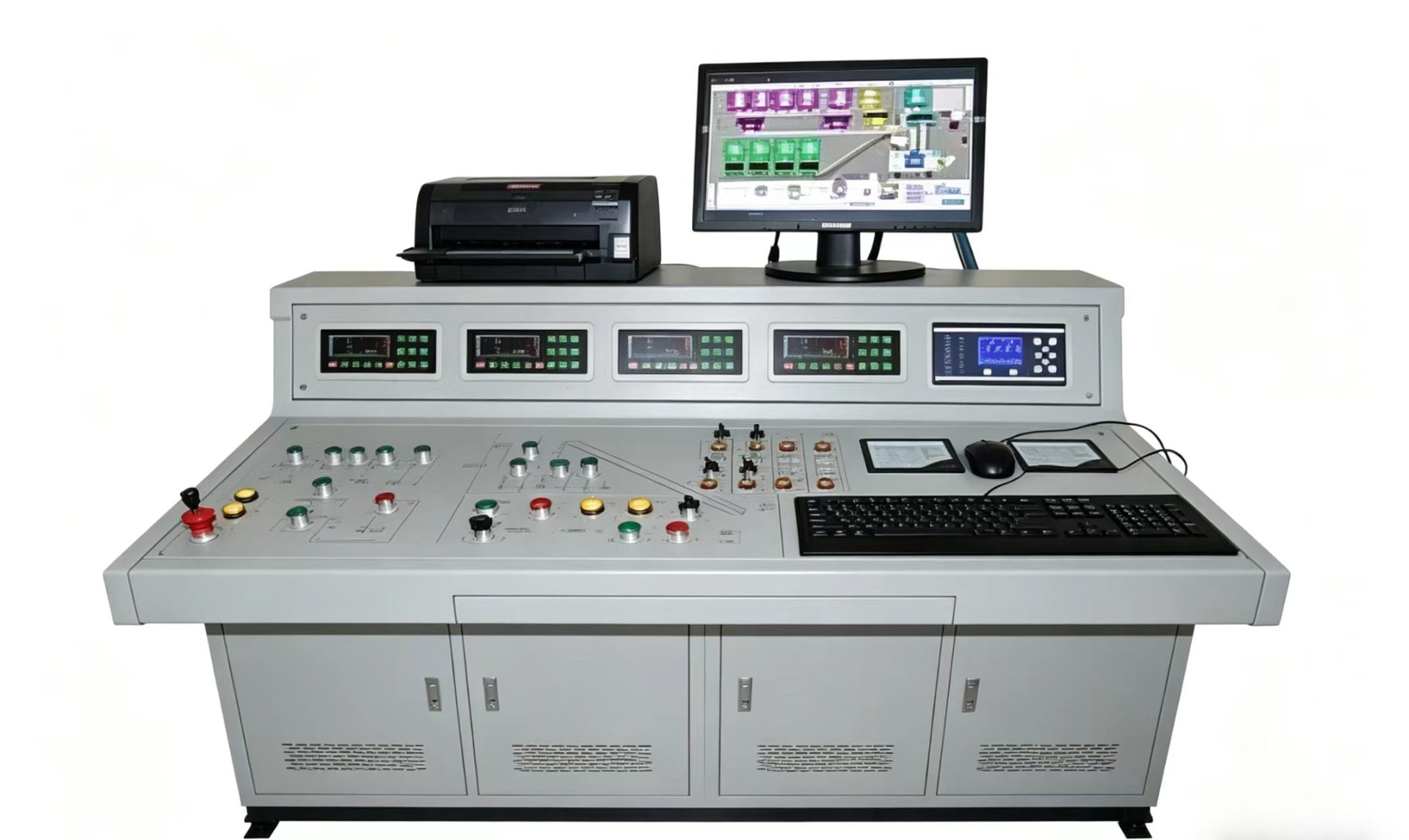

Uses an intelligent PLC control system supporting automatic, semi‑automatic and manual modes. It realizes formula storage, real‑time monitoring, data recording and fault alarm for easy and stable operation.
Core Advantages
High Efficiency & Large Output
Dual‑line independent design enables a rated productivity of 360m³/h, with each line running separately or synchronously, fully meeting large‑volume concrete demands for highways, bridges and ready‑mix plants.
Stable & Reliable Mixing Performance
Dual high‑performance twin‑shaft mixers ensure even mixing within 60 seconds, producing consistent high‑quality concrete for long‑term continuous operation.
High‑Precision Weighing & Stable Proportioning
Weighing accuracy reaches ±2% for aggregates and ±1% for cement, water and additives, ensuring uniform concrete quality and reliable performance for commercial production.
Intelligent Control & Easy Operation
Powered by a central PLC system, it supports automatic production, formula storage, real‑time monitoring and fault alarms. The user‑friendly interface reduces labor intensity and improves efficiency.
Strong Conveying & Durable Structure
Each line features 700t/h aggregate conveying capacity for stable feeding. Heavy‑duty steel structure provides excellent wear and vibration resistance, adapting to harsh job sites with low failure rates.
Compact Layout & Easy Maintenance
With a 4.3m discharge height compatible with most mixer trucks, the compact layout allows easy access to key components, reducing maintenance time and cost.
