Core Advantages
1. High-Efficiency Production

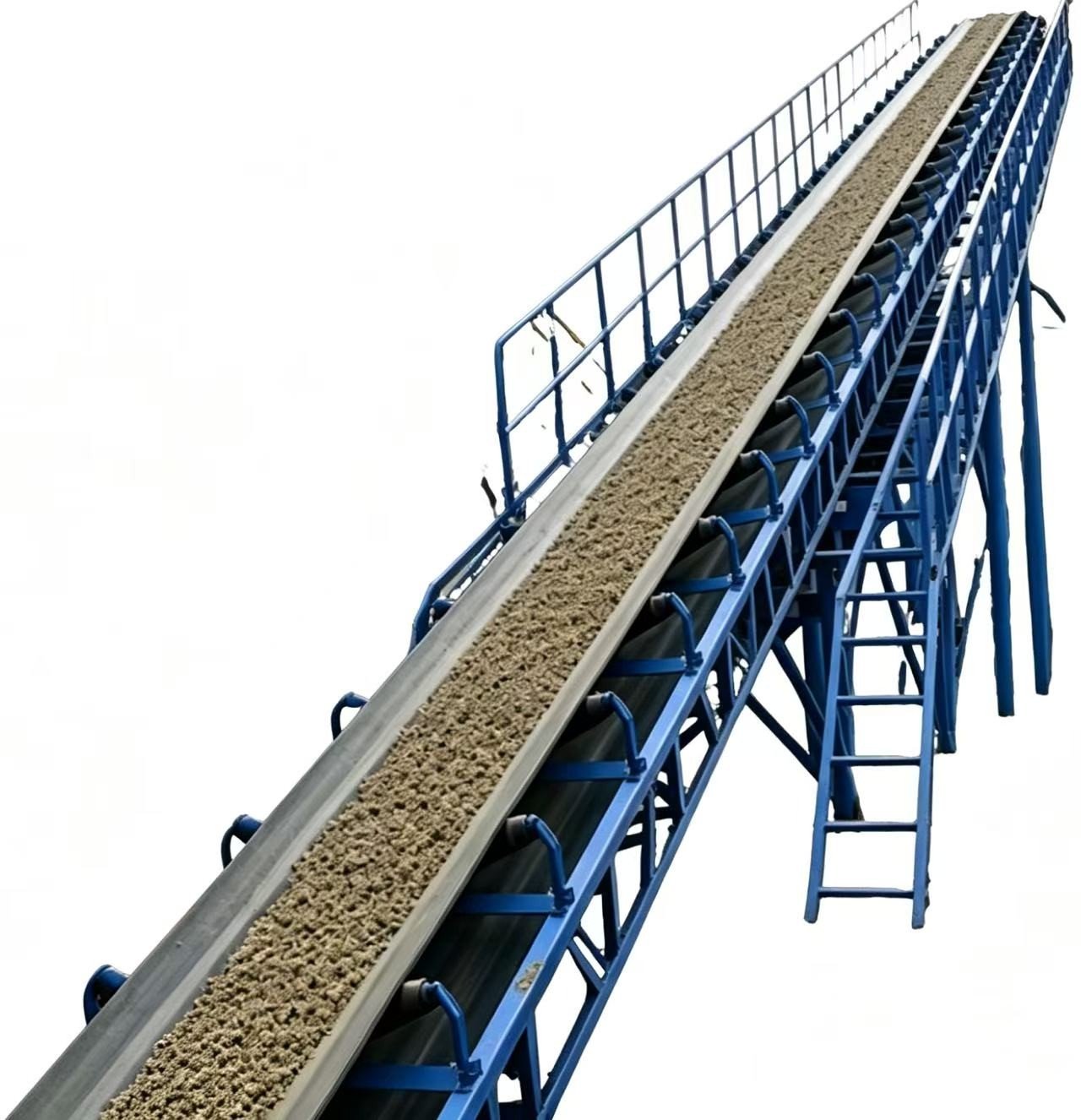

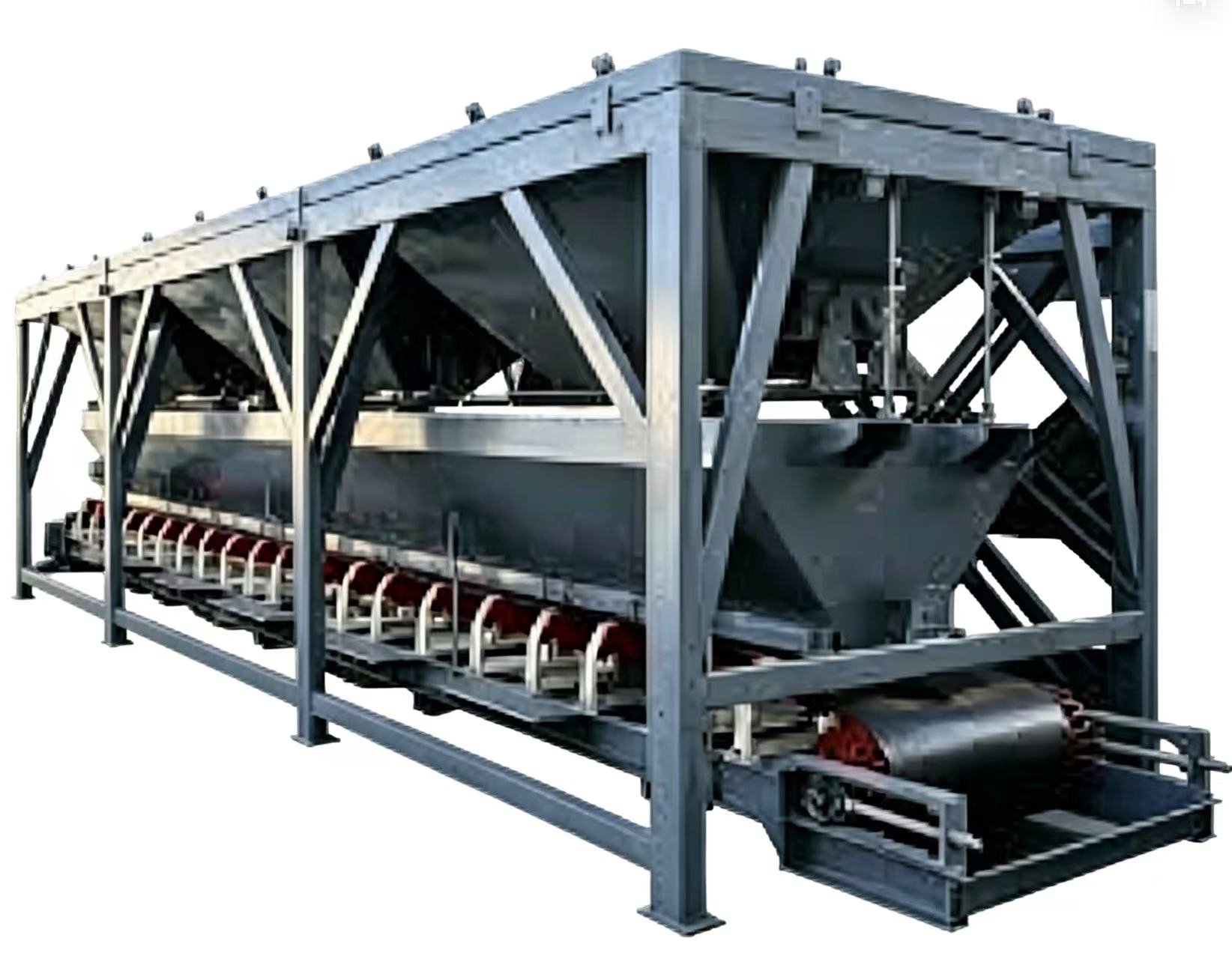

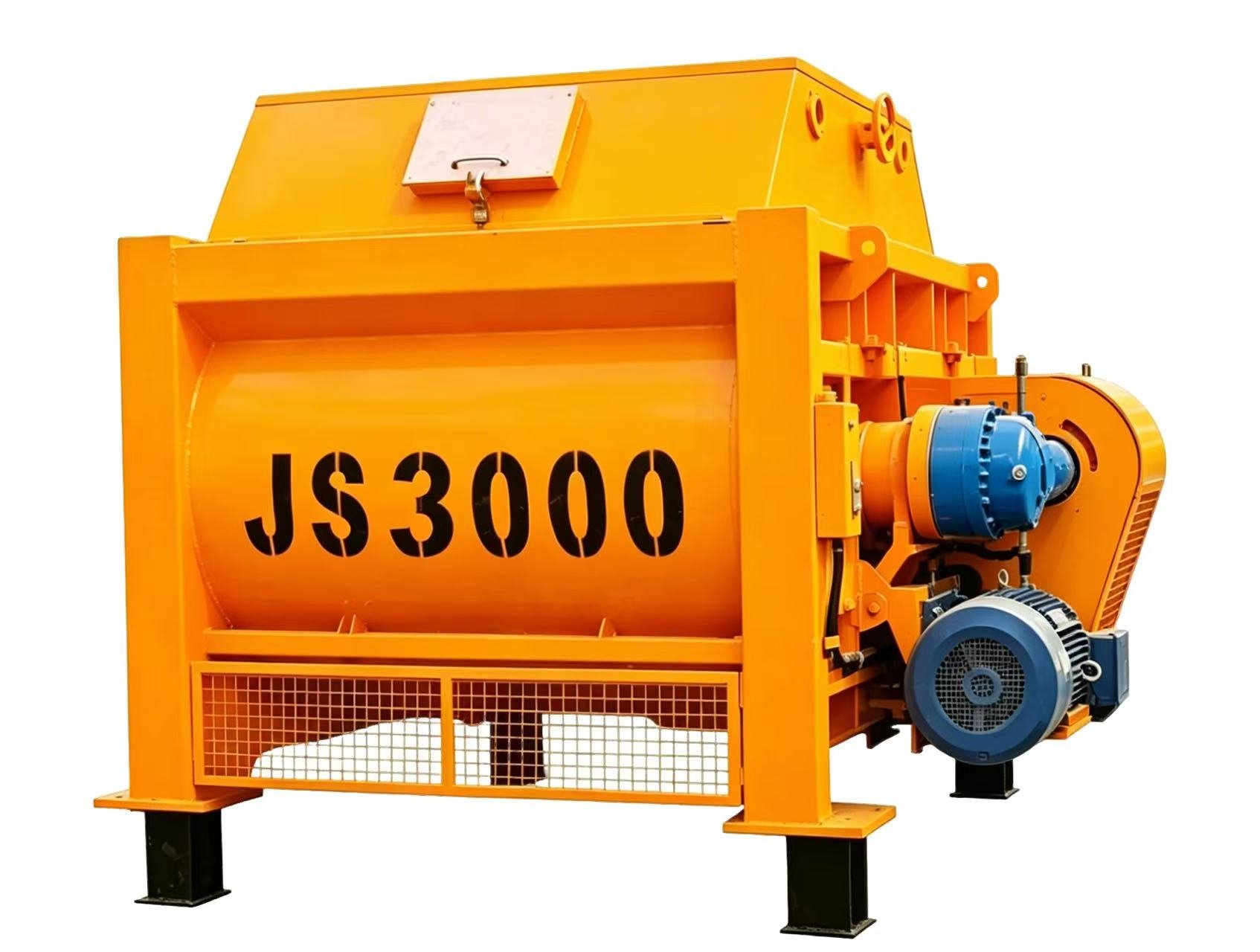

With JS4500/3000 twin-shaft mixer and PLD4800 batching system as core, it adopts heavy-duty transmission and optimized stirring blades for stable continuous production. Equipped with low-failure motor drive drum and 6 aggregate hopper vibrators, it ensures smooth, dust-free conveying to meet large-scale construction needs.
Core Index | Specific Data |
Mixer Core Configuration | JS4500/3000 Twin-Shaft Mixer |
Theoretical Productivity | 180m³/h |
Aggregate Conveying Belt Specification | 1200mm herringbone belt |
Aggregate Weighing Capacity | 3600kg per hopper |
2. Precise Measurement System
Equipped with a classified independent high-precision digital weighing system with automatic compensation, it precisely controls all raw materials to ensure uniform concrete quality. It supports high-performance concrete proportioning, avoiding quality defects and material waste, and meets key project standards.
Measured Material | Measurement Accuracy | Weighing Capacity |
Aggregate | ±2% | 3600kg per hopper |
Cement | ±1% | 1600kg |
Fly Ash/Slag Powder | ±1% | 750kg |
Clean Water | ±1% | 750kg |
Admixtures | ±1% | 80kg (stainless steel hopper) |
3. Intelligent Control

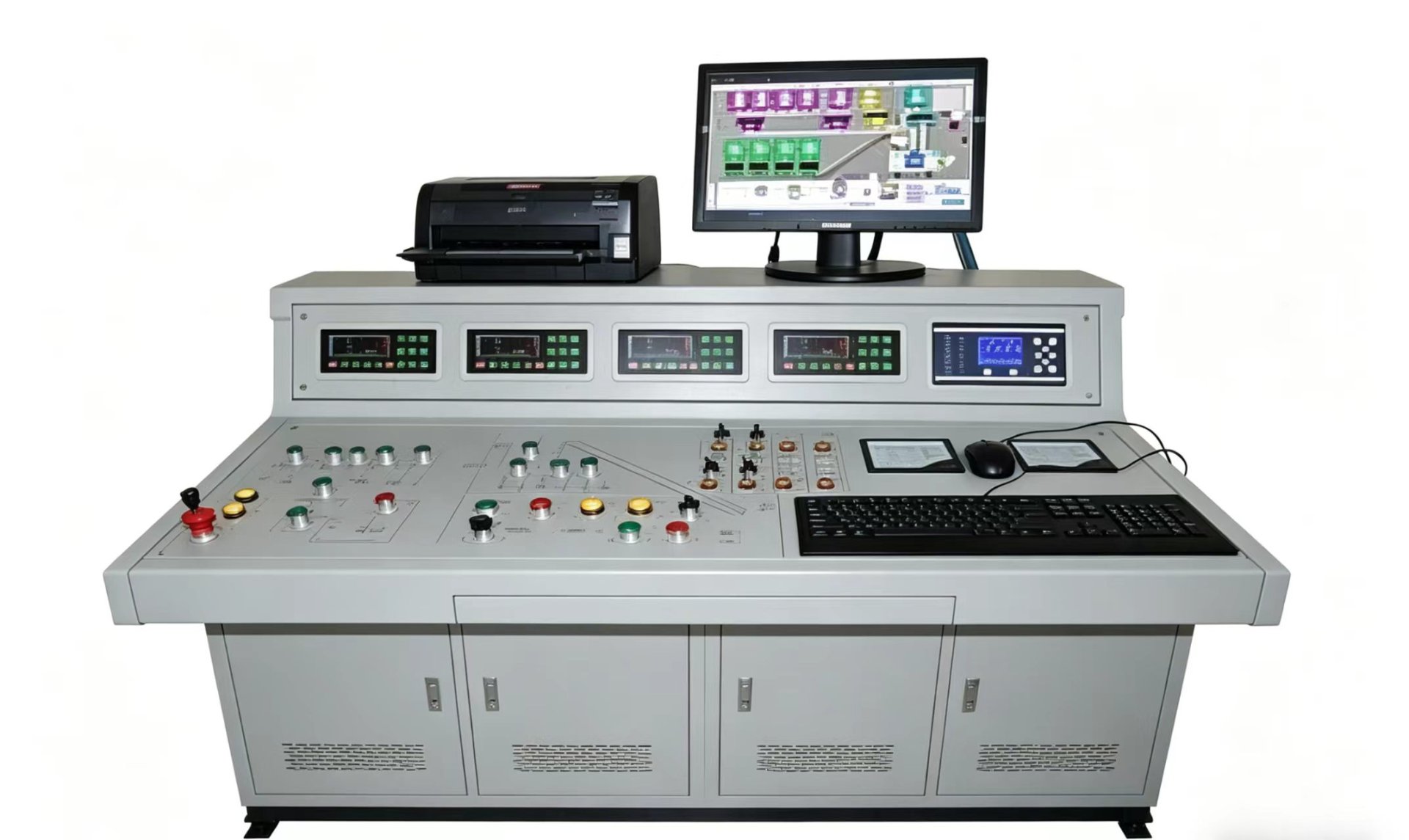

It adopts an advanced intelligent PLC control system with Schneider/Siemens electrical components, supporting automatic, semi-automatic and manual operation modes. Equipped with an industrial computer and self-developed software, it has formula storage, data query, report printing and fault diagnosis functions. The enclosed air-conditioned control room with a 24-inch display ensures comfortable and intuitive operation.
4. Eco-Friendly & High-Quality Structure
Environmentally upgraded, it is equipped with a HUITE pulse dust collector for centralized dust removal. The aggregate feeding cover has a polyurethane baffle curtain to prevent splashing and dust. The whole machine adopts a heavy-duty galvanized anti-corrosion steel structure, adapting to 24-hour high-load operation and extending service life.
Core Index | Specific Design |
Main Frame Material | National standard section steel (galvanized anti-corrosion) |
Aggregate Feeding Protection | Polyurethane baffle curtain (dust-proof and anti-splashing) |
Hopper Liner | Wear-resistant steel liner (for material collecting hopper) |
Dust Removal System | Integrated pulse dust collector (centralized dust removal) |
5. Durable Structure & Easy Maintenance
Adopting a reinforced modular design with a national standard steel frame, it has a stable structure, small footprint and easy installation. Core wearing parts use high-quality materials; motor external drive and independent maintenance ports facilitate daily inspection. It provides a 1-year warranty for core components and comprehensive after-sales service to reduce operation and maintenance costs.
6. Wide Adaptability
It is suitable for large-scale scenarios such as commercial concrete production, key road and bridge, hydraulic, prefabricated building and super high-rise projects, especially those with a daily demand of 1500-2500m³. It offers customized configurations and solutions to meet diverse project needs with high cost performance.
