HUITE HZS120 Stationary Concrete Batching Plant Client Case in Saudi Arabia
HUITE Concrete Batching Plant Machinery Co., Ltd. is committed to providing customized, high-efficiency concrete mixing solutions for global clients. This case focuses on our HZS120 stationary concrete batching plant deployed in Saudi Arabia, which was tailor-made to address the local harsh construction environment and specific project demands, delivering stable performance and remarkable economic benefits for the client.
Project Overview
Client: A well-known local construction enterprise in Saudi Arabia (engaged in municipal road and residential building construction)
Project Location: Riyadh, Saudi Arabia
Equipment Model: HZS120 Stationary Concrete Batching Plant (Customized Version)
Project Period: 12 months (continuous operation)
Core Demand: The client needed a high-efficiency stationary concrete batching plant that could adapt to Saudi Arabia’s high-temperature (up to 50℃ in summer) and dusty desert environment, meet the demand for C30-C50 high-strength concrete for large-scale construction, and realize intelligent remote monitoring to reduce manual operation intensity.
Customized Solutions & Data Support
Combined with the client’s actual needs and local environmental characteristics, HUITE carried out targeted customization on the standard HZS120 stationary concrete batching plant model, with measurable results supported by specific data:
1. High-Temperature Adaptation Customization
• Customized heat insulation and cooling system for the mixing host and electrical control cabinet, adopting high-temperature resistant materials for key components (such as mixer blades and lining plates), which can stably operate at 50℃ without shutdown due to overheating.
• Data Performance: The average operation stability rate reaches 98.5% in high-temperature periods, reducing equipment failure rate by 40% compared with standard models, and ensuring 24-hour continuous production.
2. Environmental Protection & Dust Control Customization
• Equipped with a fully enclosed aggregate silo, pulse dust collector (customized with enhanced dust removal capacity), and sealed belt conveyor, which meets Saudi Arabia’s environmental protection standards for construction projects.
• Data Performance: Dust emission concentration ≤ 30mg/m³, far lower than the local standard of 50mg/m³; the on-site dust reduction effect is recognized by the local environmental protection department, avoiding construction suspension risks.
3. Intelligent Control Customization
• Customized intelligent control system with multi-language (English/Arabic) operation interface, remote monitoring function, and automatic fault alarm, realizing one-click operation and reducing manual operation by 30%.
• Data Performance: The weighing accuracy of aggregate, cement, water and admixture reaches ±1%, ensuring the uniformity of concrete mixing (mixing uniformity ≥ 95%), and the qualified rate of concrete products is 100%.
4. Production Efficiency Customization
• Optimized the mixing host structure, adopted spiral loop-current mixing technology, and customized the feeding sequence and speed, improving mixing efficiency by 10% compared with standard models.
• Data Performance: Theoretical productivity 120m³/h, actual continuous production capacity 115m³/h, which fully meets the client’s demand of 10,000m³ concrete per month, shortening the project construction period by 15%.
HZS120 Stationary Concrete Batching Plant Technical Parameters
Parameter Item | Specification |
Model | HZS120 (Customized for Saudi Arabia) |
Theoretical Productivity | 120m³/h |
Mixer Model | JS2000 Twin-shaft Forced Mixer |
Batching Machine Model | PLD3200 Pneumatic Independent Weighing Batching Machine |
Weighing Accuracy | Aggregate: ±2%; Cement/Water/Admixture: ±1% |
Discharging Height | 4.2m (Adjustable according to client’s needs) |
Total Power | 185KW |
Silo Capacity | 4×150T (Customizable) |
Operating Temperature Range | -10℃ ~ 55℃ (Customized high-temperature adaptation) |
Control System | Full-automatic Centralized Control (English/Arabic Interface, Remote Monitoring) |

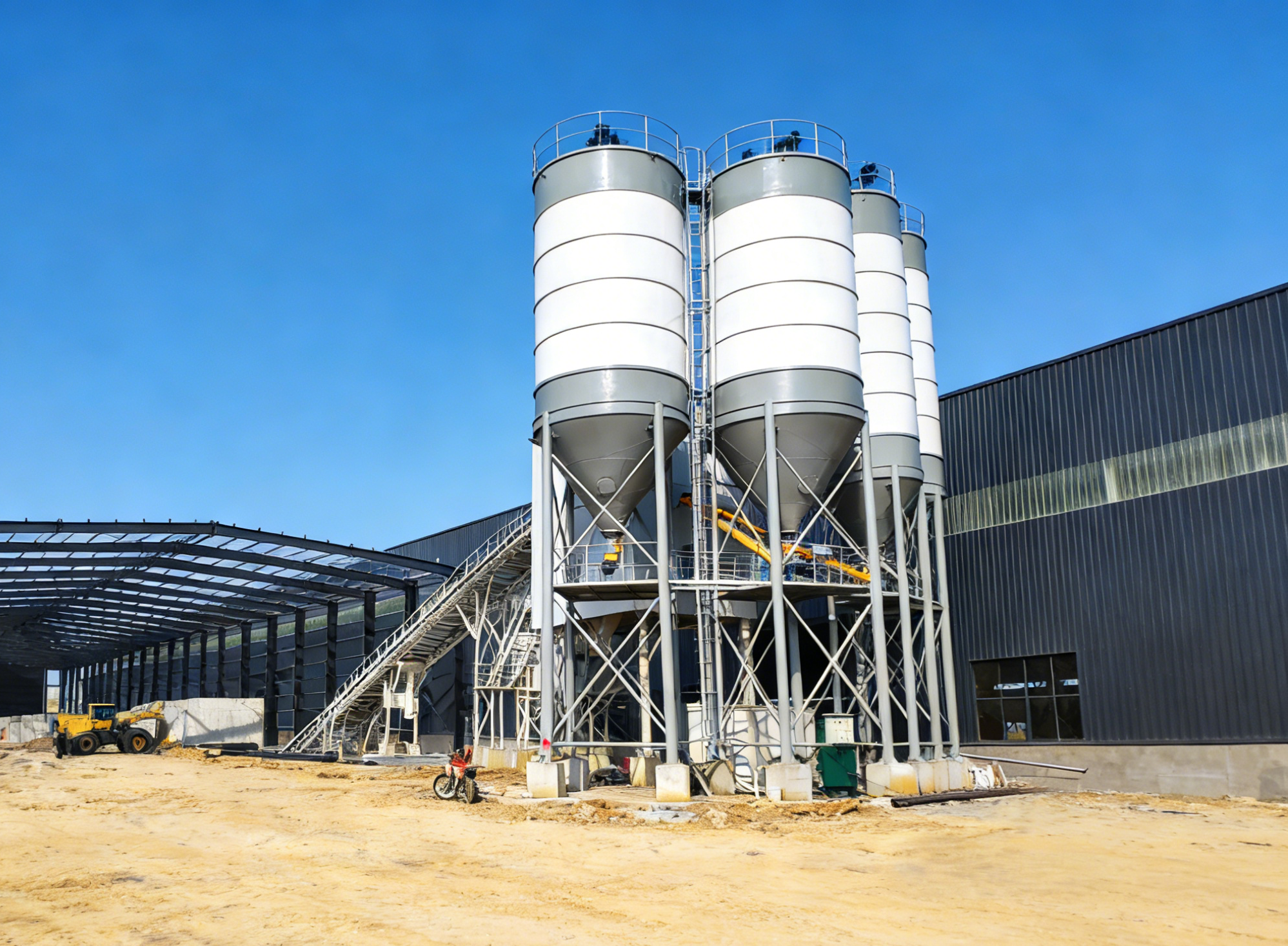

Product Images
Client Feedback
“The customized HZS120 stationary batching plant from HUITE perfectly adapts to our local construction environment. Its high-temperature resistance and stable performance ensure the smooth progress of our project. The intelligent control system greatly reduces our labor costs, and the 100% qualified rate of concrete products helps us win more project bids. We highly recognize HUITE’S professional customization capability and after-sales service.” —— Engineering Director of the Saudi Client |
About Huite
HUITE Concrete Batching Plant Machinery Co., Ltd. is a professional manufacturer integrating R&D, production, sales and after-sales service of concrete mixing equipment. We have rich experience in customized solutions for global projects, especially in harsh environment adaptation (high temperature, cold, desert, etc.). Our products have been exported to more than 50 countries and regions, including Saudi Arabia, the United Arab Emirates, Nigeria, and Indonesia, providing reliable equipment support for global construction projects.
